Can a Servo Flute Laminator Deliver Both Speed and Precision?

You’re running a corrugated packaging line—producing shipping boxes, retail displays, or multi-layer board for consumer goods. The process requires bonding a printed top sheet to corrugated bottom board—quickly, precisely, and without wrinkles or misalignment. A flute laminating machine with servo-driven positioning is the equipment that makes this happen at production speeds up to 12,000 sheets per hour, with ±1mm accuracy across the entire run. This guide covers the key specifications, material compatibility, control features, and selection criteria for one of these precision workhorses. No fluff—just the practical information you need to evaluate whether a servo laminator is the right fit for your corrugated line.

Three Servo Motors and a 1.5-Meter Correction Zone

The difference between a servo laminator and a standard automatic type comes down to how the sheets are positioned and corrected. In a standard machine, the top sheet is fed and laminated with limited adjustment capability. In a servo laminating machine, the convey bridge for the top sheet is lengthened to 1.5 meters, where multiple pulling-balls (correction units) allow for real-time sheet alignment. This extended correction zone, combined with three servo motors—one controlling the bottom sheet and two controlling the top sheet—enables precise lamination even at high speeds.

The 1.5-Meter Correction Bridge

The lengthened convey bridge is the key differentiator. It gives the sheet more time and space to be aligned before it meets the corrugated board—reducing waste and improving yield on every run.

Independent Control for Top and Bottom Sheets

With independent control of top and bottom sheets, the machine can compensate for misalignment on both sides simultaneously. This is critical for large-format sheets where even minor drift can ruin the finished product.

12,000 SPH – Speed That Keeps the Line Moving

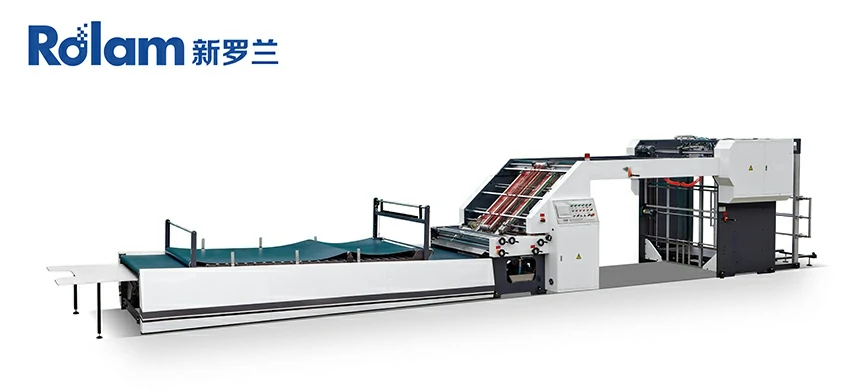

The B-1450H and B-1650H models deliver a maximum speed of 12,000 sheets per hour (SPH). At this rate, a single machine can produce tens of thousands of laminated sheets per shift—enough to feed multiple downstream converting lines. The one-key commissioning feature completes setup in 20 seconds, minimizing downtime between job changes.

What 12,000 SPH Means for Your Line

At 12,000 sheets per hour, the machine produces one laminated sheet every 0.3 seconds. This sustained speed, combined with the quick setup time, makes the servo laminator suitable for both long-run commodity work and short-run specialty jobs.

Quick Changeovers with One-Key Commissioning

The 20-second commissioning time means you can switch between different sheet sizes and board types without lengthy setup procedures. This flexibility reduces the minimum economic batch size and allows you to respond faster to customer orders.

Sheet Sizes and Substrates – From 400×400 to 1650×1650

The B-1450H and B-1650H models accommodate a wide range of sheet sizes and substrates. The maximum sheet size is 1450×1450mm for the B-1450H and 1650×1650mm for the B-1650H, with a minimum sheet size of 400×400mm for both models.

Top Paper Thickness Range

The machines handle top paper thickness from 120-500 gsm. This range covers everything from lightweight liners to heavy-duty kraft, giving you the flexibility to produce both lightweight retail packaging and heavy industrial containers on the same equipment.

Corrugated Board Compatibility

The laminator supports a full range of corrugated board types, including A, B, C, E, and F flute, as well as four-layer corrugated board (AB, BB, BC, EE) and cardboard paper above 300 GSM. This broad compatibility makes the machine suitable for diverse packaging applications, from single-wall shipping boxes to complex multi-wall structures.

±1mm Precision – Protecting Print Quality

In corrugated lamination, registration accuracy determines whether the finished product looks professional or defective. The B-1450H and B-1650H achieve ±1mm precision for both front and back alignment. This accuracy is maintained through a servo compensation positioning system that provides full-course left and right correction on the top sheet.

Photoelectric Sensing for Real-Time Correction

Multiple sets of photoelectric sensors at the end of the paper detect the relative position of the bottom sheet and feed that information back to the servo motors controlling the top sheet. The system then makes independent compensation adjustments on both sides to ensure precise lamination.

Why ±1mm Matters

A misalignment of just a few millimeters can ruin a printed design—cutting off logos, misaligning fold lines, or creating uneven margins. The ±1mm accuracy ensures that the printed graphics align correctly with the corrugated board, reducing waste and delivering consistent quality.

Glue System – Stainless Steel Rollers and Clean Application

The glue system is a critical component that affects both bond strength and machine maintenance. The B-1450H and B-1650H use stainless steel glue rollers that never rust. After narrow grinding, these rollers guarantee a minimum, evenly coated glue application.

Glue Types Supported

The machine supports white glue and starch glue. White glue is commonly used for high-quality laminations where bond strength and appearance matter. Starch glue is a more economical option for commodity packaging where ultimate bond strength is less critical.

Water-Cleaned Down Roller

The down roller is cleaned by a water roller, which simplifies maintenance and keeps the glue system running cleanly. This reduces glue buildup and extends the life of the rollers.

Key Technical Specifications

What Production Managers Ask About High-Speed Laminating

What substrates can this machine laminate?
The B-1450H and B-1650H laminate top paper (120-500gsm) to corrugated board (A, B, C, E, F flutes), four-layer corrugated board (AB, BB, BC, EE), and cardboard paper above 300 GSM.

What is the maximum production speed?
The machines achieve 12,000 sheets per hour with one-key commissioning completing setup in 20 seconds.

How accurate is the lamination?
The servo compensation positioning system maintains ±1mm precision for both front and back alignment across the full speed range.

What glue types does it support?
White glue and starch glue are both supported. The stainless steel glue rollers are designed for minimum, evenly coated application.

Ready to Boost Speed and Accuracy on Your Laminating Line?

Selecting a flute laminating machine comes down to three factors: sheet size (match your largest format), production speed (match your volume targets), and substrate range (match your material mix). Contact Gaoke Machinery for a customized quote → —their team can help you select the right B-1450H or B-1650H configuration for your specific corrugated packaging needs.

This article was written with the assistance of AI to organise technical data from Gaoke Machinery's product documentation and industry standards.

Gaoke Machinery is a manufacturer of laminating and converting equipment for the corrugated packaging industry. The Servo Laminating Machine B-1450H/1650H features a motion control system with servo correction, three servo motors for independent sheet control, a 1.5-meter correction bridge, and photoelectric sensors for real-time positioning. It achieves speeds of 12,000 SPH with ±1mm accuracy and supports top paper from 120-500gsm and corrugated board including A, B, C, E, F flutes and four-layer configurations. The machine includes stainless steel glue rollers, a PLC and HMI control system, CE-compliant electrical design, and a flip-flop stacking system for finished sheets. Gaoke Machinery provides comprehensive technical support, installation guidance, remote troubleshooting, and after-sales service. Connect with Gaoke Machinery to discuss your sheet size requirements, production volume targets, and substrate specifications.
