What Makes a Thermal Laminator Reliable for High-Volume Production?

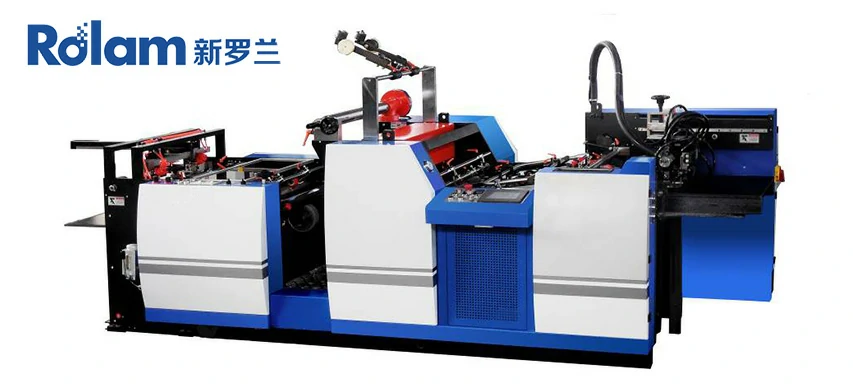

You’re running a printing or packaging operation, and the laminating step determines whether your finished products look professional or end up in the reject bin. A Film Laminator applies a protective thermal film to printed sheets—enhancing durability, appearance, and shelf life. The LYFM-1080MK fully automatic high-speed thermal laminating machine is designed for commercial print and packaging operations that demand consistent quality at production speeds.

With a maximum speed of 130m/min, sheet sizes up to 1080×1200mm, and a four-feed four-suction feeder that runs at 12,000 sheets/hour, it’s built for high-volume finishing lines. This guide covers what makes this laminator a reliable choice for production environments—from feeder precision to temperature control to cutter unit performance—and why the details matter for consistent output.

Precision That Starts at the Feeder

The feeder is the first point of control in any laminating line. If sheets enter misaligned, the rest of the process compensates—poorly.

Four-Feed Four-Suction Technology

The LYFM-1080MK is equipped with a high-accuracy four-feed four-suction feeder that runs at up to 12,000 sheets/hour. The feeder head drive can move back and forth, accommodating both large and small sheet sizes without manual adjustment. This design ensures that each sheet enters the laminating section consistently, regardless of the job size. A non-stop feeding mechanism with a pre-stack paper system eliminates downtime for reloading, keeping production continuous.

Servo-Controlled Lap Accuracy

The servo motor controls paper lap precision, ensuring that the overlap between sheets stays within ±2mm—even at full speed. A pull lay and front lay mechanism work with auxiliary positioning pressure sheets to prevent paper from warping over the front lay. This level of control is critical for preventing misfeeds and ensuring that each sheet aligns correctly before entering the laminating section.

Straightness and Registration

The front lay and pull lay mechanisms ensure the straightness of lamination products, preventing skew that can cause waste. The sheet flattening mechanism for thin paper adds another layer of control, ensuring that even lightweight stock feeds consistently. The result is fewer rejects and higher yield from every run.

Heat That Stays Consistent

Temperature control is the single most critical factor in thermal lamination. Inconsistent heat creates bubbles, poor adhesion, and curled edges.

German Mirror Roller Technology

The core of the laminating section is a mirror hot-pressing roller with a 380mm diameter, made using German manufacturing technology. The roller surface goes through dozens of processing procedures to achieve IT6 precision grade. This ensures that the roller surface is perfectly smooth and flat, eliminating the imperfections that cause uneven lamination.

Temperature Variance Under 3°C

The roller surface temperature is maintained within ±3°C across the entire width. This consistency is achieved through an inner circulation mechanism using heat conduction oil, controlled by a mould temperature machine. The small temperature variation eliminates hot spots and cold zones that cause quality issues. For large ink prints, this temperature stability is particularly important—it prevents the quality problems that occur when temperature fluctuates.

Air-Cooled Deformation Prevention

After lamination, products pass through an air-cooling treatment that reduces the high temperature of printed materials, preventing paper deformation. The hydraulic station provides automatic boost for the press mechanism, maintaining consistent pressure across the lamination nip. Film winding tension is manually adjustable through a magnetic powder tension mechanism, with an edge-trimming feature for removing excess film.

Speed That Doesn’t Compromise Quality

High speed is useless if the output isn’t usable. The LYFM-1080MK balances both.

130m/min with ±2mm Accuracy

The machine runs at a maximum speed of 130m/min, processing sheets at 12,000 sheets/hour. Despite this speed, the ±2mm lap accuracy is maintained through servo motor control. The main press roller is heated by a mould temperature machine that keeps temperature consistent across the roller surface, so speed doesn’t come at the cost of quality.

Quick Setup and Changeover

The machine features a chain knife cutter with a central display screen for centralized control. All data is clear at a glance, making setup and monitoring straightforward. The operation is convenient, with all machine parameters accessible from the display.

Chain Knife Cutter

The product uses a punching and pull-off film cutting mechanism. This cutting method reduces waste and ensures clean, accurate cuts. The chain knife cutter is integrated into the production line, eliminating the need for a separate cutting operation.

Questions Production Managers Ask About Thermal Laminators

What film types does the machine support?

The machine is designed for thermal film lamination, with film thickness ranging from 0.01-0.02mm. The thermal film is activated by heat and pressure during the laminating process, bonding to the paper surface without the need for adhesive. This makes it suitable for commercial print and packaging applications where clean, consistent lamination is required.

How does the machine handle different paper weights?

The machine handles paper from 105-500g/㎡, covering a wide range of substrates. The high-accuracy four-feed four-suction feeder, combined with the sheet flattening mechanism for thin paper, ensures consistent feeding across the full weight range. For thicker stocks, the servo-controlled lap accuracy ensures consistent overlap.

What is the minimum and maximum sheet size?

The machine handles sheet sizes from 340×320mm up to 1080×1200mm. This range covers most commercial print and packaging formats, from small brochures to large posters and packaging blanks.

The Investment That Pays for Itself

A thermal laminator is a significant capital investment, but the LYFM-1080MK is designed to deliver consistent returns through reduced waste, higher throughput, and lower maintenance costs.

Reduced Waste Through Precision

The ±2mm lap accuracy and consistent temperature control minimize rejects. With fewer misaligned sheets and fewer lamination defects, waste is significantly reduced. Over a year of production, the savings from reduced waste alone can offset a substantial portion of the machine‘s cost.

Higher Throughput at 130m/min

At 130m/min, the machine processes 12,000 sheets per hour. This throughput means faster job completion and shorter lead times. For commercial print operations, the ability to turn jobs around faster is a competitive advantage.

Lower Maintenance with 3,200m² In-House CNC

The machine is manufactured in a 3,200m² in-house CNC machining center with full process traceability. This ensures that every component is made to precise tolerances, reducing the likelihood of premature wear. The result is lower maintenance costs and less unplanned downtime.

Gaoke Machinery manufactures the LYFM-1080MK fully automatic high-speed thermal laminating machine, featuring a high-accuracy four-feed four-suction feeder, servo motor lap control with ±2mm accuracy, a German-technology mirror hot-pressing roller with temperature variance under 3°C, and a chain knife cutter with centralized touch-screen control. The machine is CE certified with 60+ industry patents. Gaoke provides professional service from pre-sales to after-sales, ensuring installation support, operator training, and ongoing technical assistance.

Let’s Test Your Substrates on the LYFM-1080MK

The right thermal laminator makes the difference between a finishing line you can trust and one that keeps you guessing. Whether you’re running high-volume commercial print, packaging, or specialty substrates, the LYFM-1080MK offers the speed, precision, and temperature control that demanding applications require.

Contact Gaoke Machinery’s team to schedule a test run with your specific substrates—they can provide guidance on settings and help you evaluate the machine‘s performance with your materials.
