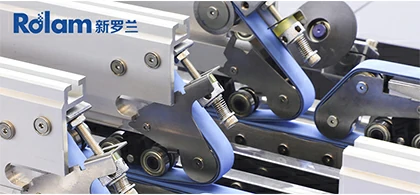

Can a Folding Gluing Machine Handle 4-Corner and 6-Corner Boxes?

Your box plant runs a mix of jobs—straight-line cartons one day, crash-lock bottom boxes the next, and the occasional 4-corner or 6-corner specialty box that ties up your semi-automatic machine for hours. You’ve got the orders, but your equipment is the bottleneck.

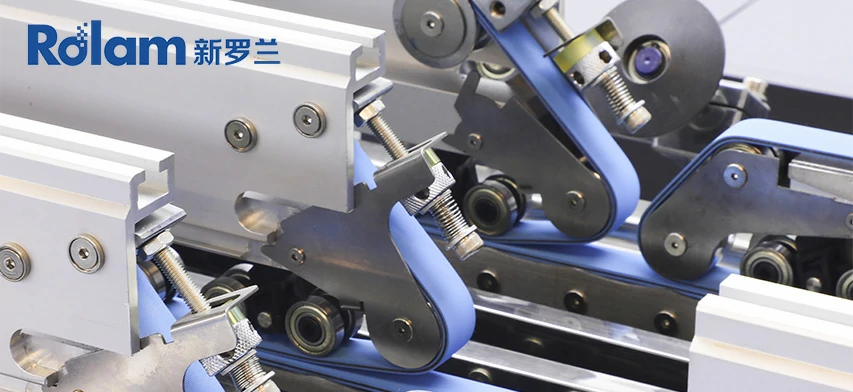

A Folding Gluing Machine like the LC Series Automatic 4&6 Corner Folder Gluer from Gaoke Machinery is built for exactly this scenario. It handles a wide range of box types—straight-sided, lock-bottom, and 4/6 corner cartons—with a multifunctional design that eliminates the need for multiple machines. Running at up to 400m/min on cardboard from 210-800gsm, it keeps pace with your production demands.

This guide walks you through what makes the LC Series a versatile workhorse for modern box plants—from its modular design to its rapid changeover capabilities.

A Machine That Adapts to Your Box Mix

Not every order is the same. Your machine shouldn’t force you to turn down work just because the box style doesn’t fit.

Straight-Line, Lock-Bottom, 4-Corner, 6-Corner – All in One

The LC-S series is equipped with a multifunctional universal module designed for multi-type work capabilities. This includes an integrated “bump & turn” function that allows the machine to rotate cartons 90 degrees for alignment. This means you can run straight-sided boxes, lock-bottom boxes, and four-six-sided boxes on the same machine. Instead of dedicating one machine to each box type or tying up operators with lengthy changeovers, you run them all on a single line.

Modular Design That Grows with You

The machine’s modular design facilitates the installation of additional components, expanding its range of applications. As your order mix evolves—new box styles, new materials, new customer requirements—the machine can adapt. You’re not locked into a fixed configuration. The LC-S features an extra-long crash lock bottom section and an extra folding & closing section with a collapsible central carrier, specifically designed to handle complex box structures.

Paperboard and Flute Compatibility

The LC Series handles cardboard from 210-800gsm, as well as A/B/E/N/F flutes. This range covers everything from lightweight folding cartons to heavier corrugated packaging. For box plants serving multiple industries—food, cosmetics, pharmaceuticals, stationery—this versatility is a major advantage.

Speed That Keeps Up with Your Line

Versatility is useless if the machine can’t run fast enough to meet your production targets.

400m/min – Enough for High-Volume Runs

The LC-S runs at a maximum speed of 400m/min. At this speed, a single machine can handle the output that would require multiple slower units. For plants running high-volume orders—especially in food and beverage packaging—this speed translates directly to throughput.

Consistent Speed, Consistent Quality

Speed alone doesn’t matter if the quality drops. The LC-S maintains consistent folding and gluing quality across the full speed range. The folding section features fold 1 and fold 3 at 180° and 135°, fold 2 and fold 4 at 180°, ensuring precise folding regardless of speed. The machine’s design prioritizes stability, so you’re not sacrificing quality for throughput.

Handles Maximum Box Thickness of 12mm

The machine handles a maximum folded box thickness of 12mm across all models. This means you can run thicker paperboard and corrugated materials without worrying about jams or misfeeds—a critical capability for heavy-duty packaging applications.

Changeovers That Don’t Cost a Shift

The hidden cost of running multiple box styles is changeover time. The LC Series is designed to minimize it.

Quick and Precise Changeovers

The LC-S integrates advanced design concepts and technology, featuring fast job changeover capabilities. For a box plant running multiple jobs in a single shift, this capability is the difference between meeting targets and falling short.

Independent Motor-Driven Feeding

The automatic feeding system is driven by a variable frequency motor and synchronizes with the main engine, with workpieces saved and retrievable at will. This means the feeder can be set up and adjusted separately from the main machine, reducing setup time and allowing operators to prepare the next job while the current one is still running.

Intelligent Servo Technology

The LC-S features an intelligent servo motor technology for its 4/6-corner device. This ensures precise and repeatable folding of complex corner boxes, reducing the trial-and-error time typically associated with setting up these challenging jobs.

Built for Real-World Production

The LC Series isn’t just about speed and versatility—it’s about running reliably, shift after shift.

Heavy-Duty Construction

The machine features a heavy-duty structure designed for all-weather production in demanding environments. The aluminum plate chute structure brings durable performance and easy maintenance, making the equipment stable and reliable even in long-term high-intensity production.

Precision Gluing System

The LC-S is equipped with a spraying system featuring three guns for precise glue application. This allows for quick and accurate sizing, especially convenient in the production of 4/6 corner boxes and various special-shaped boxes. The lower gluing tank is easy to remove and clean, simplifying maintenance.

Comprehensive Quality Control

The machine includes an electronic counting device and kicking paper device, as well as a feeding paper inspection device. These features help maintain quality control throughout the production run, catching issues before they become rejects.

Questions Box Plant Managers Ask

What box types can the LC Series handle?

The LC-S produces straight-sided boxes, lock-bottom boxes, and four-six-sided boxes. This covers the majority of folding carton applications—from standard packaging to specialty boxes with complex folding patterns. The multifunctional universal module includes a 90° corner attachment and left/right corner pre-bending functions.

How does the LC Series handle the complexity of 4/6 corner boxes?

The LC-S is specifically designed for 4/6 corner boxes. It features an integrated “bump & turn” mechanism that rotates cartons 90 degrees for alignment, an extra-long crash lock bottom section, and an intelligent servo motor technology for its 4/6-corner device. The spraying system with three guns ensures precise gluing for these complex shapes.

What materials can the machine process?

The machine handles cardboard from 210-800gsm, as well as A/B/E/N/F flutes. This covers lightweight paperboard for cosmetics and pharmaceuticals through to heavier corrugated for food and beverage packaging.

A Versatile Partner for Your Box Plant

The LC Series Automatic 4&6 Corner Folder Gluer represents a practical solution for box plants that need to run a diverse order mix without sacrificing speed or quality.

Gaoke Machinery manufactures the LC Series with a focus on versatility, speed, and rapid changeover. The machine handles straight-line, lock-bottom, and 4/6-corner boxes in a single pass, running at up to 400m/min on cardboard from 210-800gsm. With a modular design and heavy-duty construction, the LC Series is built for the demands of modern packaging production.

The machine’s ability to handle a wide range of box types and materials makes it a practical choice for box plants serving multiple industries—food, medicine, cosmetics, stationery, and heavy-duty packaging. With the LC Series, you’re not choosing between versatility and speed. You’re getting both.

Ready to see if the LC Series fits your box mix? Reach out to Gaoke Machinery’s team—they can provide machine specifications, application guidance, and a customized assessment based on your specific production requirements.
