Does a Flute Laminating Machine Need Automatic Tracking?

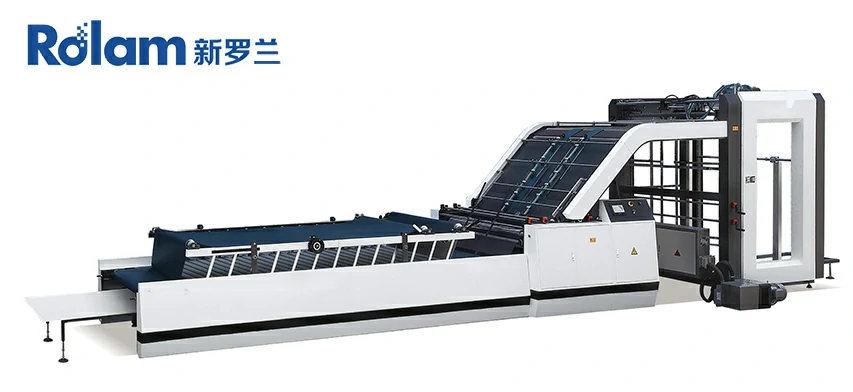

You're laminating printed top sheets onto corrugated board, and every millimeter of misalignment costs you. The top sheet carries the brand; the bottom board provides the strength. If they don't align, the box looks wrong and the structure weakens. A Flute Laminating Machine with automatic tracking maintains alignment at full speed. The YB-1300E/1450E/1650E series from Gaoke Machine uses advanced tracking technology to adjust parameters in real time based on paper size, keeping the lamination within ±1mm at speeds up to 6000 sheets per hour. This article explains how automatic tracking works, what the front gauge positioning system contributes, and what to verify before specifying a flute laminator for your corrugated packaging line.

What Determines Lamination Quality at High Speed?

Speed alone doesn't produce good laminated board. The top sheet must meet the corrugated substrate in precise alignment, and that alignment must hold as the machine accelerates, runs, and slows. Three factors determine quality: fitting precision, tracking response, and feeding stability.

Fitting Precision and Speed Trade-offs

The YB series maintains ±1mm fitting precision across its full speed range. That means the top sheet and bottom board align within one millimeter whether the machine runs at startup speed or at its maximum 6000 sheets per hour. Achieving this requires more than just a rigid frame. It requires a control system that can react to variations in paper position as they occur.

Real-Time Parameter Adjustment

The machine uses advanced automatic tracking technology that continuously monitors paper size and adjusts relevant parameters in real time. As the top sheet feeder and bottom paper suction system operate, the tracking system compensates for minor shifts, preventing drift that would cause misalignment. This keeps the machine running in its optimal condition without operator intervention.

How Does the Front Gauge Positioning System Work?

The unique front gauge positioning system ensures that the bottom paper never exceeds the top sheet, while the top paper overhang is adjustable. This one-sided registration approach gives operators control over the final appearance. The machine also adopts the side gauge positioning principle from offset printing machines, applying it to error correction during top paper stacking and feeding. This aligns the top sheets consistently before they meet the corrugated board, reducing the correction burden on the lamination station.

Bottom Paper Suction and Feeding Control

The bottom paper uses suction automatic feeding with adjustable wind strength controlled through the touch screen. This ensures that each corrugated sheet is delivered to the lamination point consistently, regardless of board thickness or stiffness. The belt humidifying function helps maintain proper moisture for consistent feeding.

Top Sheet Feeding and Nozzle Angle Adjustment

The top sheet feeding mechanism uses a high-precision, high-speed automatic feeder with a strengthening-type paper feeding device. The nozzle angle is adjustable, making it suitable for different types of paper. This flexibility allows the machine to handle top sheet thicknesses from 150g to 600g without manual mechanical changes.

Which Corrugated Board Grades Can Be Laminated?

The YB series handles bottom sheet materials including A, B, C, E, and F corrugated paper as well as industrial paperboard. This range covers single-wall, double-wall, and micro-flute boards used in packaging, display, and shipping applications. The top sheet thickness ranges from 150-600g, accommodating lightweight printed sheets through heavier card stock.

Sheet Size Range Across the YB Series

Maximum sheet size ranges from 1300×1250mm on the YB-1300E to 1650×1450mm on the YB-1650E. Minimum sheet size is 400×400mm across all three models. This range covers everything from small food cartons to large shipping boxes.

Top Sheet and Glue System Compatibility

The top sheet can be any printable paper from 150-600g, including coated, uncoated, and specialty stocks. The fully automatic glue supplementary system automatically replenishes the loss of glue amount and works with the glue recycling system. An independent water tank control cycle ensures the bottom paper back dries while cleaning the roller, glue receive tank, and back glue tank.

YB Series: Key Specifications for Corrugated Production

Model Comparison by Width and Power

The YB-1300E handles sheet sizes up to 1300×1250mm with 10KW power and 5000kg weight. The YB-1650E extends to 1650×1450mm with 12KW power and 6000kg weight. All three models share the same maximum speed and fitting precision. The choice between models depends on the maximum sheet size required and the available power supply.

Pre-Stack and Continuous Feeding Features

The standby stack table allows paper to be piled without stopping the machine, moving along the rail into the elevator for continuous operation. This reduces downtime during long production runs and allows operators to prepare the next stack while the current one is being processed.

Where Does Corrugated Lamination Deliver the Most Value?

The YB series serves packaging applications where color printing must be combined with corrugated strength. Food and beverage packaging often uses a printed top sheet laminated to corrugated board for shelf appeal and structural rigidity. E-commerce and shipping cartons require durable boxes that can withstand handling, and the YB series laminates printed top sheets to A/B/C/E/F corrugated board. Display and promotional packaging demand high-quality graphics on rigid corrugated board.

• Food and beverage cartons — printed top sheets on B/E flute for retail shelves

• E-commerce shipping boxes — durable, branded cartons for fulfillment

• Display and promotional packaging — high-graphics boards for point-of-sale

• Consumer electronics packaging — premium printed boxes with structural strength

• Industrial and specialty cartons — custom laminated boards for specific uses

Color Carton Packaging for Food and Beverage

Food and beverage packaging often uses a printed top sheet laminated to corrugated board for shelf appeal and structural rigidity. The ±1mm fitting precision ensures that printed elements align correctly with the corrugated substrate.

E-Commerce and Display Packaging

E-commerce packaging requires durable boxes that can withstand handling and shipping. The YB series laminates printed top sheets to corrugated board, producing boxes that combine visual branding with structural strength. Display and promotional packaging demands high-quality graphics on rigid corrugated board, and the YB series delivers the lamination quality these applications require.

Answers to Common Questions About Flute Laminating

How does the automatic glue system work?

The fully automatic glue supplementary system automatically replenishes the loss of glue amount and works with the glue recycling system. An independent water tank control cycle ensures the bottom paper back dries while cleaning the roller, glue receive tank, and back glue tank. This reduces manual intervention and maintains consistent adhesive application.

What maintenance does the machine require?

Routine maintenance includes checking the glue system for consistent application, verifying the front gauge positioning accuracy, inspecting the suction feeding system for the bottom paper, and monitoring the PLC for fault alarms. The single side adjustment of roller pressure with a dial gauge simplifies the replacement of the bottom paper. Imported electrical components and PLC tracking technology with automatic fault alarm reduce troubleshooting time.

Can the machine handle different paper types?

The strengthening type paper feeding device has an adjustable nozzle angle, suitable for different types of papers. The bottom paper suction system can adjust wind strength through the touch screen, and the belt humidifying function helps maintain proper moisture for consistent feeding. This flexibility allows the machine to handle a range of top sheet thicknesses (150-600g) and corrugated board types.

What safety features are included?

The machine includes automatic fault detection and alarm through the PLC system. The touch screen interface provides real-time status monitoring. Safety guards protect operators from moving parts in the feeding and lamination sections. The electrical system uses imported components for stable performance.

Request a Flute Laminating Configuration for Your Line

A Flute Laminating Machine with automatic tracking, ±1mm fitting precision, and 6000 sheets/hour speed is the practical choice for converters producing color cartons and corrugated packaging at volume. The Automatic Flute Laminating Machine YB-1300E/1450E/1650E from Gaoke Machine delivers 6000 sheets/hour production speed, ±1mm fitting precision, A/B/C/E/F corrugated capability, 150-600g top sheet thickness range, automatic tracking technology for consistent parameters, front gauge positioning for accurate registration, and fully automatic glue supplementary system with recycling.

Whether you're producing food packaging, e-commerce cartons, or display materials, this machine offers the speed, precision, and material flexibility that modern corrugated converting demands. With three model widths from 1300mm to 1650mm, it adapts to your specific sheet size and production volume requirements.

Contact Gaoke Machine for a flute laminating configuration assessment → their team can help you select the right model, feeding system, and glue configuration for your specific board types and production targets. Get a Flute Laminating Machine that keeps pace with your line—so your corrugated production runs at full speed without the bottleneck.
