Does a Folding Gluing Machine Need Intelligent Memory?

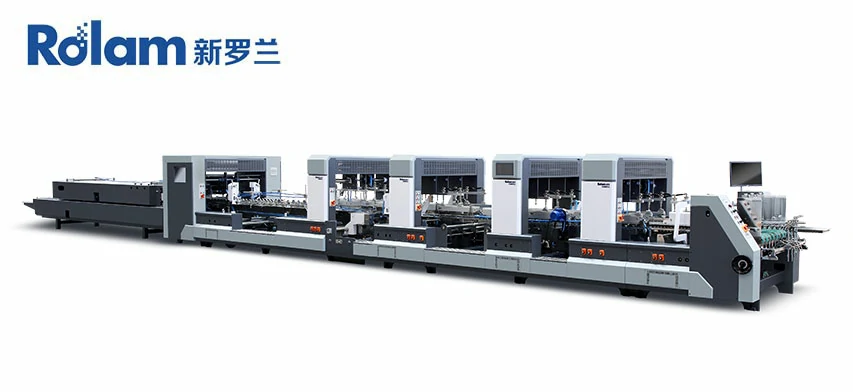

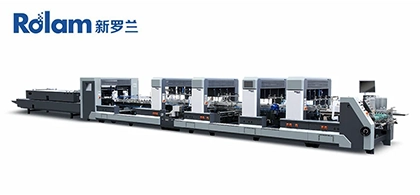

You're producing folding cartons in a range of styles — straight-line, crash-lock bottom, double-wall, and the increasingly popular 4- and 6-corner boxes. Switching between these formats on a single machine has traditionally meant extensive mechanical changeover and trial-and-error. A Folding Gluing Machine with an intelligent memory function changes that. The XL Series from Gaoke Machinery runs at up to 400 m/min, handles cardboard from 210-800gsm and A/B/E flute, and stores job parameters so repeat runs start with less setup work. This article explains what the memory function delivers in daily operation, how the machine handles 4- and 6-corner formats, and what to verify before specifying a folder gluer for your carton line.

What Does the Intelligent Memory Function Deliver?

The intelligent memory function is the defining feature of the XL Series. Once a job has been trial-run and the settings are confirmed, the machine stores those parameters. When the same job comes back — a seasonal promotion, a repeat order, a recurring carton style — the operator recalls the stored settings instead of starting from scratch. This directly reduces setup time and the labor required to get a machine ready for production. The memory function is particularly valuable for converters running a high-mix, low-volume schedule. Instead of treating every job as a new setup challenge, the machine builds a library of proven parameters that can be reused.

Reducing Setup Time for Repeat Jobs**

The first run of any new carton requires trial and adjustment. The memory function captures that successful setup. On the next run, the machine returns to those settings, eliminating the trial-and-error phase. For carton styles that repeat regularly, this translates to measurable reductions in downtime and waste.

High-Mix Production Without Starting From Scratch**

Converters serving multiple brands and seasonal promotions often run dozens of different carton styles per month. The memory function allows the machine to store these styles and recall them as needed. The result is a machine that adapts to high-mix production without treating every job as a new learning curve.

How Does the Machine Handle 4- and 6-Corner Formats?

The XL Series is suitable for straight-line, crash-lock bottom, double-wall, 4-corner, and 6-corner boxes. The pre-folding section plays a key role in this flexibility. The special first folding line pre-folds at 180°, and the third line at 165°, meeting the requirements of automatic packaging. The crash-lock bottom section provides a complete set of devices to form the lock bottom perfectly, with a sectional-type upper belt board for precise control. For 6-corner boxes, the additional folding lines are handled by the folding and closing section, where the second and fourth folding lines operate at 180°.

Pre-Folding for Accurate 4- and 6-Corner Formation**

The pre-folding section conditions the crease lines before the final folding and gluing stages. The 180° first line and 165° third line pre-folding ensures that the carton folds cleanly at the corners, without cracking or misalignment. This is essential for 4- and 6-corner boxes, where multiple folds must meet precisely.

Crash-Lock Bottom and Double-Wall Capability**

The crash-lock bottom section uses a complete set of devices to form the lock bottom, with a sectional-type upper belt board that supports the box during formation. For double-wall cartons, the machine's folding and closing section handles the additional layers without compromising the glue bond or the box geometry.

Technical Specifications Across the XL Series

Blank Width Options for Different Carton Formats**

The XL Series is available in three blank widths: 650mm, 800mm, and 1100mm. The 650mm model handles standard folding cartons, while the 1100mm model accommodates larger formats and multi-up layouts. The choice depends on the maximum carton blank size required.

Speed, Thickness, and Material Range**

The 400 m/min maximum speed positions the XL Series for high-volume production. The 12mm maximum folded box thickness covers cartons made from heavier board and multi-layer structures. The 210-800gsm cardboard range and A/B/E flute capability allow one machine to process both folding cartons and corrugated cartons.

What Other Features Support Consistent Production?

The XL Series includes several features that contribute to consistent, reliable operation. The paper feeding section uses a variable frequency motor synchronized with the main engine, three feeding knives with adjustable asymmetric lengths, and a vibration device that helps the machine feed consecutively and automatically. The aligner section corrects the paper board after feeding to ensure accurate transmission. The lower gluing tank is 2L, easy to remove and clean, with an electronic upper gluing system by guns.

Variable Frequency Feeding and Vibration Device**

The variable frequency motor drives the feed part and synchronizes with the main engine, ensuring consistent feeding as the machine accelerates and decelerates. The vibration device coordinates with the motor to help the machine feed consecutively and automatically, reducing the risk of misfeeds and jams.

Counting, Kicking, and Box Squaring**

The Rombone section is equipped with a photo-electronic counting device and a kicking paper device that presses the paper after counting, making it easy to pack. A feeding paper inspection device monitors the flow. The box squaring section continuously and automatically presses the cartons, with a box collection mechanism that ensures a neat transfer to the press section for well-aligned stacking.

Where Does the XL Series Deliver the Most Value?

The XL Series serves carton converters producing a range of folding carton styles for food, cosmetics, pharmaceuticals, and consumer goods. The combination of 4- and 6-corner capability, intelligent memory, and 400 m/min speed makes it suitable for both high-volume commodity cartons and high-mix specialty packaging.

• Food packaging cartons — cereal boxes, frozen food cartons, and dry goods packaging

• Cosmetic and personal care boxes — 4- and 6-corner cartons for premium products

• Pharmaceutical cartons — folding cartons for medicines and healthcare products

• Consumer electronics packaging — cartons for small appliances and accessories

• Promotional and gift boxes — specialty cartons for seasonal campaigns

Food and Consumer Goods Cartons**

Food and consumer goods packaging often requires high-volume production of standard carton styles. The XL Series delivers 400 m/min speed and consistent glue application, ensuring that every carton meets the strength and appearance requirements of the brand.

4- and 6-Corner Specialty Cartons**

Cosmetic and gift cartons often use 4- and 6-corner formats for a premium look. The pre-folding section and crash-lock bottom capability allow the machine to form these complex styles without compromising on quality. The intelligent memory function makes repeat production of specialty cartons more efficient.

Answers to Common Questions About Folder Gluers

What carton styles can the XL Series produce?**

The XL Series is suitable for straight-line, crash-lock bottom, double-wall, 4-corner, and 6-corner boxes. This range covers the majority of folding carton formats used in packaging.

What is the maximum speed of the machine?**

The maximum speed is 400 m/min. The actual speed depends on carton size, board weight, and the complexity of the fold pattern.

How does the intelligent memory function work?**

The intelligent memory function stores the machine settings for a job after the first successful run. When the same job is run again, the operator recalls the stored parameters, and the machine returns to those settings. This reduces setup time and eliminates trial-and-error on repeat jobs.

What maintenance does the machine require?**

Routine maintenance includes cleaning the gluing tank and guns, checking the feeding belts for tension and wear, inspecting the folding belts for proper tracking, and verifying the photo-electronic counting device. The lower gluing tank is easy to remove for cleaning.

Request a Folder Gluer Configuration for Your Carton Line

A Folding Gluing Machine with intelligent memory, 4- and 6-corner capability, and 400 m/min speed is the practical choice for carton converters who need flexibility across multiple box styles. The XL Series from Gaoke Machinery delivers 400 m/min speed, 210-800gsm cardboard and A/B/E flute capability, 12mm max folded thickness, blank widths of 650mm, 800mm, and 1100mm, and an intelligent memory function for repeat jobs.

Whether you're producing food cartons, cosmetic boxes, or specialty 4- and 6-corner packaging, this machine offers the speed, format flexibility, and setup efficiency that modern carton production demands. With pre-folding at 180° and 165°, crash-lock bottom capability, and box squaring for neat stacking, it's built for consistent, high-quality output.

Contact Gaoke Machinery for a folder gluer configuration assessment → their team can help you select the right blank width, folding configuration, and memory settings for your specific carton styles and production volume. Get a Folding Gluing Machine that runs 4- and 6-corner boxes without the setup headaches — so your production line stays flexible and efficient.
