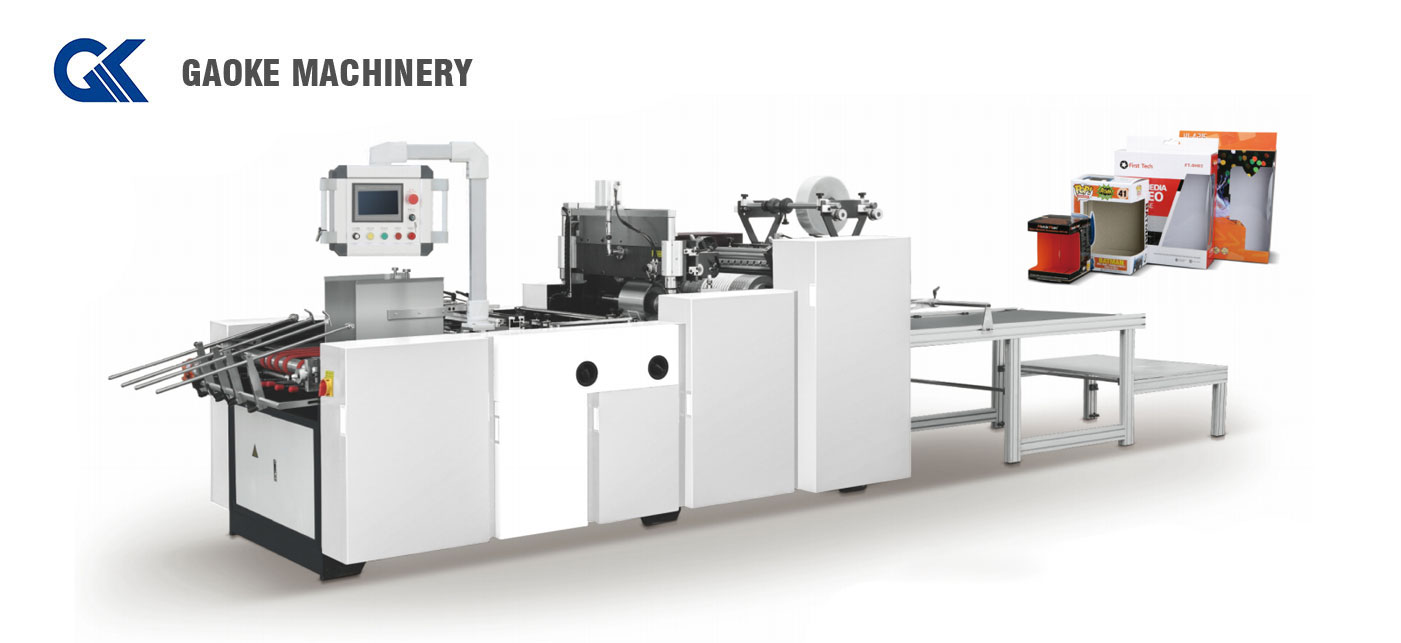

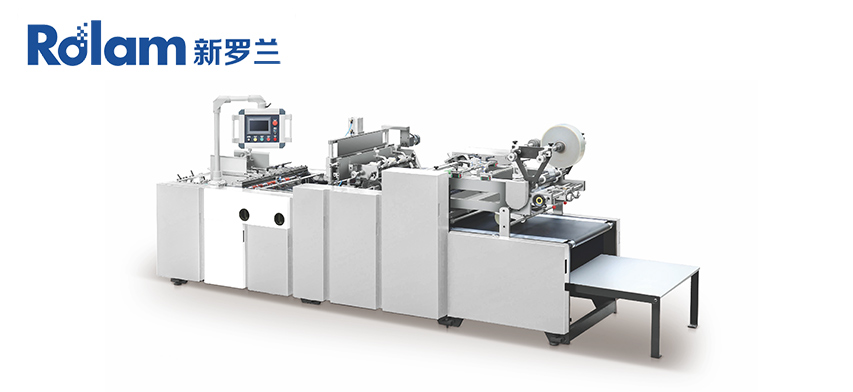

Window Patching Machine TC-700B/1080B

Structural characteristics

• The paper feeder is controlled by PLC with a human-computer interface.

   The length of paper to be fed can be entered on the touch screen, so that paper can be input quickly and accurately. Also, it applies to card paper and corrugated paper.



• The film feeder is controlled by a servo control system of a famous international brand. The length of film to be cut can be entered on the touch screen. Not only can film be cut accurately, but also adjustment can be made more quickly and directly.



• The gluing section adopted pneumatic principle,and can glue on particular part according to the window position, so no need to glue the whole roller, making it easier to clean the roller as well as saving the glue.



• Film cutter is equipped with a axis of rotation, so to suit variable window  position. It can saving the machine-adjustment time and improve productivity.



• ZKT-700B is widely used in 90 degrees angle window samples, and can do the angle cutting and creasing.



• The paper and film feeding sections are equipped with a chain guide imported from Germany and a linear guide imported from Taiwan, and other accesso ries, which helps improve film patching accuracy and reduce noise.



• Compared to the previous machine, each section of this product has improved, thus saving the adjustment time, making it more eicient and friendly in use.

Main Technical Parameter

Model	TC-700B	TC-1080B
Speed	7000-21000pcs/h (Flat film patching)	6000-10000pcs/h (Flat film patching)
	5000-10000pcs/h (V-cut and creasing)	4000-7000pcs/h (V-cut and creasing)
Paper Length	140-600mm	200-700mm
Paper Width	140-690mm	200-1080mm
Thickness of Film	0.03-0.25mm	0.03-0.25mm
Film Length	60-400mm	70-400mm
Film Width	30-400mm	30-500mm
Main Power	2.2kw	2.2kw
Power of Pump	1.5kw	1.5kw
External Dimension	4200×1400×1500mm	5500×1900×1600mm
Machine Weight	2800kg	3500kg
