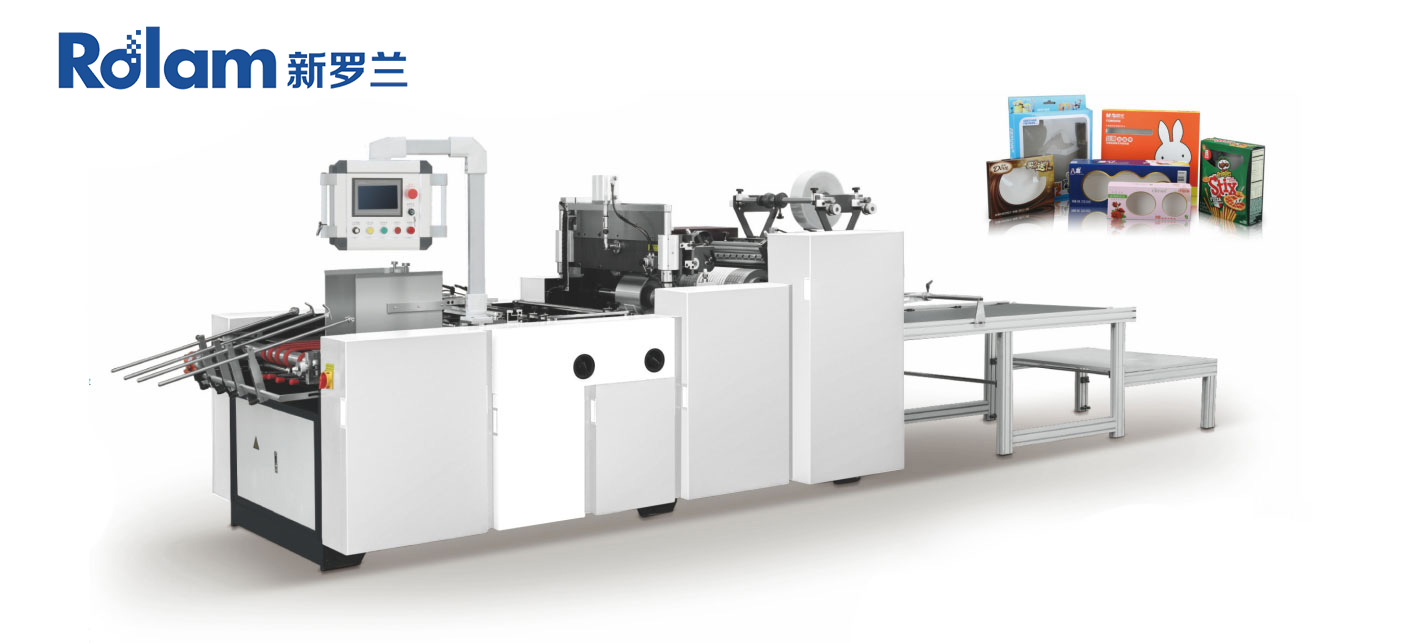

High Speed Window Patching Machine TC-700/1080

Structural characteristics

• The paper feeder adopts photoelectric control, so it is not needed to adjust paper length by hand, thus making paper feeding easy, quick and accurate. It applies to card paper and corrugated paper.



• The film feeder has an imported servo control system. It is OK to input cutting length on the touch screen, which helps improve precision and facilitate adjustment.



• The gluing section consists of chrome-plated sizing roller, glue separating guide, side limit and gluing stencil roller. It can be pulled out easily, which simplifies both setting and cleaning. The adjustable glue separating guide can control gluing range and glue volume. Aer shutdown, the cylinder raises the gluing roller and drives it with a separate motor to prevent glue from solidifying. The printing roller can be adjusted freely in the axial and radial directions without being stopped.



• A device on the film cutter can rotate axially freely in order to fit dierent window positions, which helps save the adjustment time and improve eiciency significantly.



• Compared to the previous machine, each section of this product has improved, thus saving the adjustment time, making it more eicient and friendly in use.



• The paper and film feeding sections are equipped with a chain guide imported from Germany and a linear guide imported from Taiwan, and other accessories, which helps improve film patching accuracy and reduce noise.



• The touch screen is equipped with a speed shiing unit. So it can double speed for small-sized products.

Main Technical Parameter

Model	TC-700	TC-1080
Speed	7000-31000pcs/h	6000-18000pcs/h
(speed can& changed according to the papersize)
Paper Length	160-680mm	200-680mm
Paper Width	120-700mm	120-1080mm
Film Length	60-330mm	70-330mm
Film Width	30-400mm	30-500mm
Thickness of Film	0.03-0.25mm	0.03-0.25mm
Main Power	2.2kw	2.2kw
Power of Pump	1.5kw	1.5kw
External Dimension	6200×1580×1700mm	6500×1400×1500mm
Machine Weight	2300kg	2600kg
