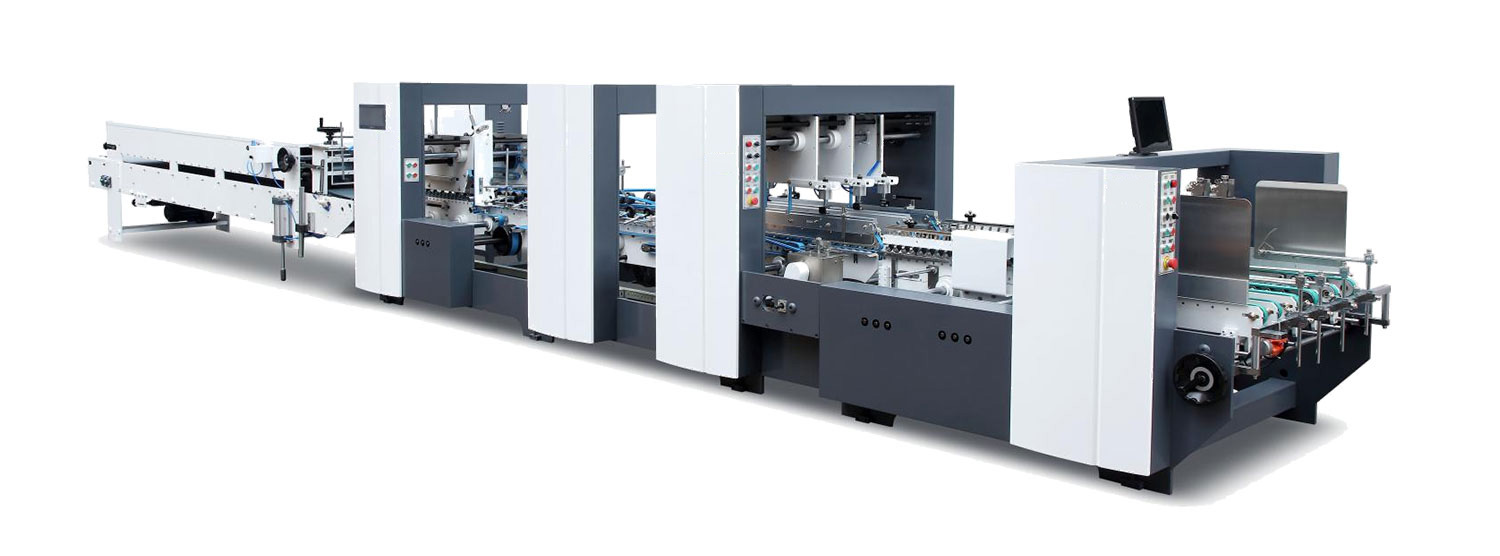

Name: Corrugated Folding Carton Machine
Brand: Gaoke
SKU: 00039
Rating: 4.1 (70 reviews)

Descriptions

Wide range of accessories that allows to different kinds of designs. Fast, steady and precise machine, easy to set up and operate.All sections with independent motor driving system.Motorized carrier movement with high precision linear guides.

Able to produce complex carton structures, straight line.

PC Technical Parameters

MODEL	1200	1450	1600
Paper material	Cardboard 210-800gsm, A/B/E Flute
Max Speed	260m/min
Max.thickness of folded box	12mm	12mm	12mm
Way of folding	fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1200mm	1450mm	1600mm

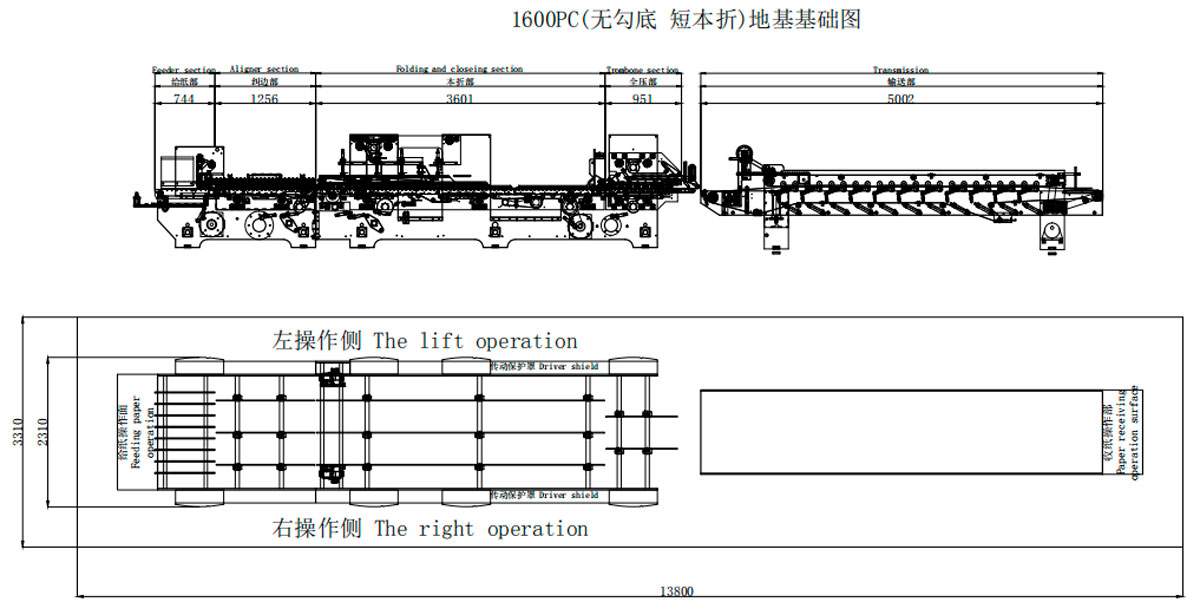

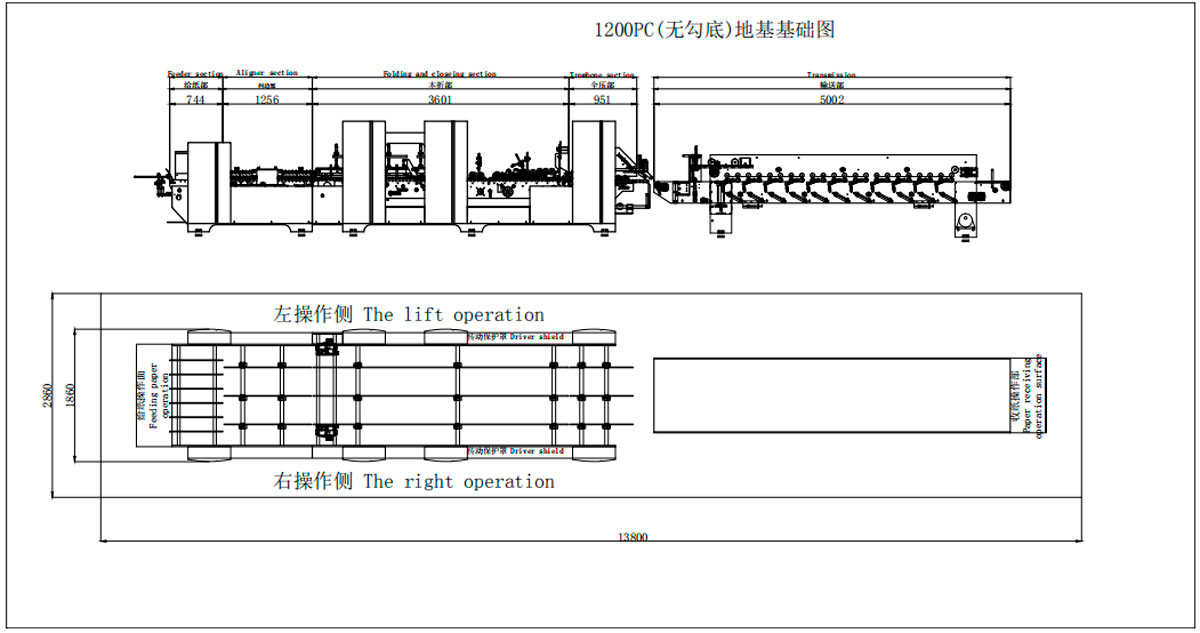

Length x Width x Height	14x1.9x1.7m	14x2.2x1.7m	14x2.3x1.7m
Net Weight	8T	9T	10T
Total power	22.28kw	22.28kw	22.28kw

Features introduction

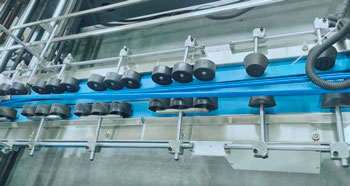

Paper Feeding Section 1. Equipped with air suction function 2. Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, 3. The unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable. 4. Baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time. 5. Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply

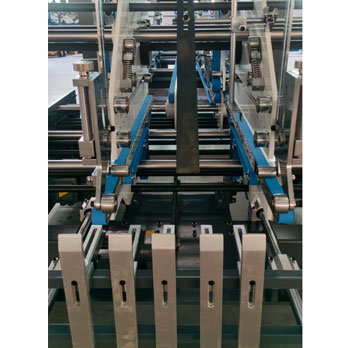

Aligner section 1. The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. 2. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

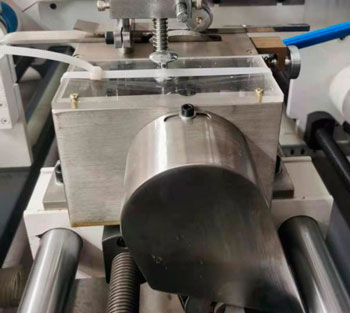

Lower gluing tank 1.Lower gluing tank is large volume. 2.Easy to remove and clean

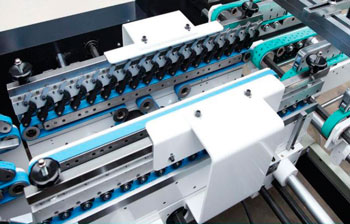

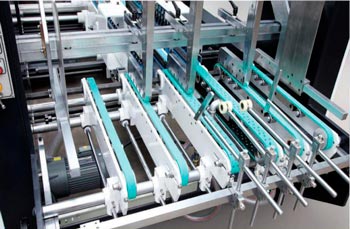

	Folding and closing 1. Equipped with 3 plate type rail device. 2. The upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products.
	Trombone section 1. Independent motor drive can be used to control the adjustable size of the belt. 2. Paper collection adopts cylinder pressure system, easier to adjust pressure, make the box more effectively gluing.

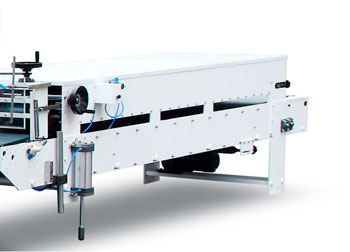

	Transmission 1. Up and down belt can be adjusted separately. 2. Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with feeding paper inspection device.
