Does a Folding Gluing Machine Keep Up With Speed and Box Variety?

You're running a packaging line that handles everything from straight-line boxes to complex six-corner designs. The machine needs to handle that variety—but it also needs to run fast enough to keep production profitable. A folding gluing machine that compromises speed for complexity, or vice versa, is a machine that limits your business. The LC Series automatic 4&6 corner folder-gluer was designed to handle both: 400 meters per minute maximum speed across all models, with a multifunctional universal module that produces straight-sided, lock-bottom, and four-six-sided boxes. This article examines how the LC Series balances speed and versatility—from the feeding section that delivers consistent sheets to the corner attachment that makes complex boxes routine.

Two Questions About Speed and Box Types

Answers for Box Plant Managers

Q: How does the machine perform across different box types?
A: The LC Series handles straight-sided boxes, lock-bottom boxes, and four-six-sided boxes without compromising speed. The new multifunctional universal module includes a 90° corner attachment and left/right corner pre-bending functions, turning complex box production into straightforward production.

Q: Does corner box production slow the machine down?
A: The LC Series reaches a maximum speed of 400 meters per minute across all models. This speed applies to both straight-line and corner box production, so you're not sacrificing throughput for capability. Pre-bending and corner forming are integrated into the workflow, not adding extra steps.

Speed That Doesn't Compromise Quality

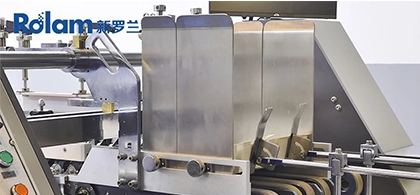

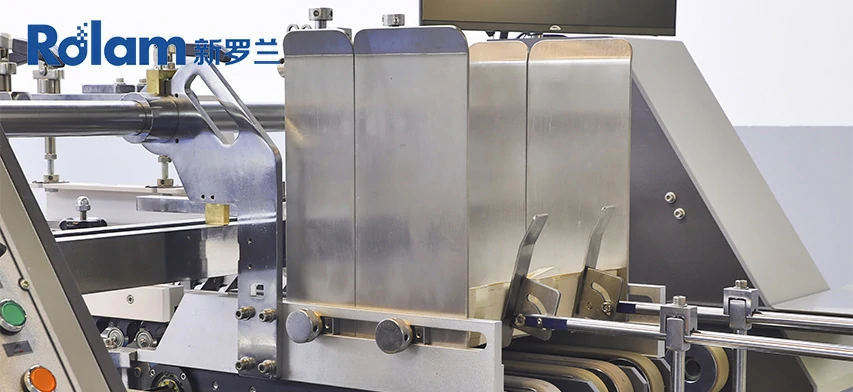

The LC Series reaches 400 meters per minute across all models. That's the kind of speed that keeps up with high-volume packaging demand. The feeding section uses three pieces of feeding knives with asymmetrical length adjustment and an aligner section that corrects paper position.

Asymmetrical Feed Adjustment for Varied Materials

Different box types have different folding requirements. The asymmetrical length adjustment on the feeding knives accommodates these variations, so each box type gets the feed setup it needs—without compromising speed for the simpler box types.

Aligner Section for Precision at Speed

At 400 meters per minute, even a small feed deviation becomes a quality problem. The aligner section corrects paper position before it enters the main folding section, ensuring that speed doesn't come at the expense of accuracy.

Corner Box Production Without the Complication

The LC Series stands out for its ability to produce straight-sided boxes, lock-bottom boxes, and four-six-sided boxes. The key to this versatility is the new multifunctional universal module.

The 90° Corner Attachment—Integrated, Not Add-On

The universal module includes a 90° corner attachment that forms the sharp, precise corners required for four- and six-corner boxes. This isn't an add-on that you install when needed—it's integrated into the machine's design, so corner boxes run as smoothly as straight-line boxes.

Pre-Bending That Prevents Cracking

The left/right corner pre-bending function prepares the cardboard for folding before it reaches the main folding section. This reduces stress on the material and ensures clean, consistent corners—particularly important for thicker cardboards where sudden folding can cause cracking.

Folding and Gluing—Working Together for Consistency

The LC Series combines folding and gluing in a single, integrated workflow. The folding section includes upper and lower folding belts with adjustable pressure, while the gluing section uses a lower gluing system and multiple gluing troughs with a PLC control system for precise adhesive application.

Adjustable Belt Pressure for Different Cardboards

The upper and lower folding belts have adjustable pressure, so you can fine-tune the folding force for different cardboard grades. Lighter cardboards need less pressure; heavier ones need more. This flexibility ensures consistent folding quality across the material range.

PLC-Controlled Glue Application

Multiple gluing troughs with PLC control provide precise glue placement and volume. PLC control means the settings are repeatable and consistent, so the glue application stays the same from the first box to the last.

Specifications at a Glance

Where the LC Series Excels

The LC Series is designed for box plants that need both speed and versatility:

Straight-Line Box Production

For standard straight-line boxes, the LC Series delivers 400 meters per minute speed. The range of models covers blank widths from 650mm to 1100mm.

Lock-Bottom Boxes

The lock-bottom capability is built into the machine's design. Dimensions match the straight-line range, so you don't lose capacity when switching to lock-bottom formats.

4&6 Corner Boxes

The multifunctional universal module with 90° corner attachment and pre-bending function makes four- and six-corner box production straightforward. Models cover corner box widths from 550mm (GS-650) to 950mm (GS-1100).

Straight Answers on Folding Gluing Machines

Q: What is the maximum speed?
A: The LC Series reaches 400 meters per minute across all models.

Q: What box types can the machine produce?
A: The LC Series produces straight-sided boxes, lock-bottom boxes, and four-six-sided boxes.

Q: What is the maximum folded thickness?
A: The maximum folded thickness is 10mm for the GS-650, GS-800, and GS-1000, and 12mm for the GS-1100.

Q: What blank widths are available?
A: The LC Series is available in four models with maximum blank widths from 650mm to 1100mm.

Q: What is the role of the multifunctional universal module?
A: The module includes a 90° corner attachment and left/right corner pre-bending functions, enabling production of four- and six-corner boxes.

Q: How does the machine handle adhesive application?
A: The gluing section uses a lower gluing system and multiple gluing troughs with PLC control for precise adhesive placement and volume.

Get a Quote for Your Box Line

A folding gluing machine that keeps up with both speed and box variety is the centerpiece of any high-volume packaging operation. The LC Series automatic 4&6 corner folder-gluer delivers 400 meters per minute, handles straight-line, lock-bottom, and four-six-sided boxes, and includes integrated corner pre-bending and forming—all without slowing down production.

Whether you're producing simple boxes or complex corner designs, the LC Series offers the speed and versatility that packaging plants need. The four model options let you match the machine to your blank width requirements.

Contact Gaoke Machine for a quote or configuration consultation → their team can help you select the right model and options for your specific box types and production targets. Get a folding gluing machine that keeps up with everything you run.
