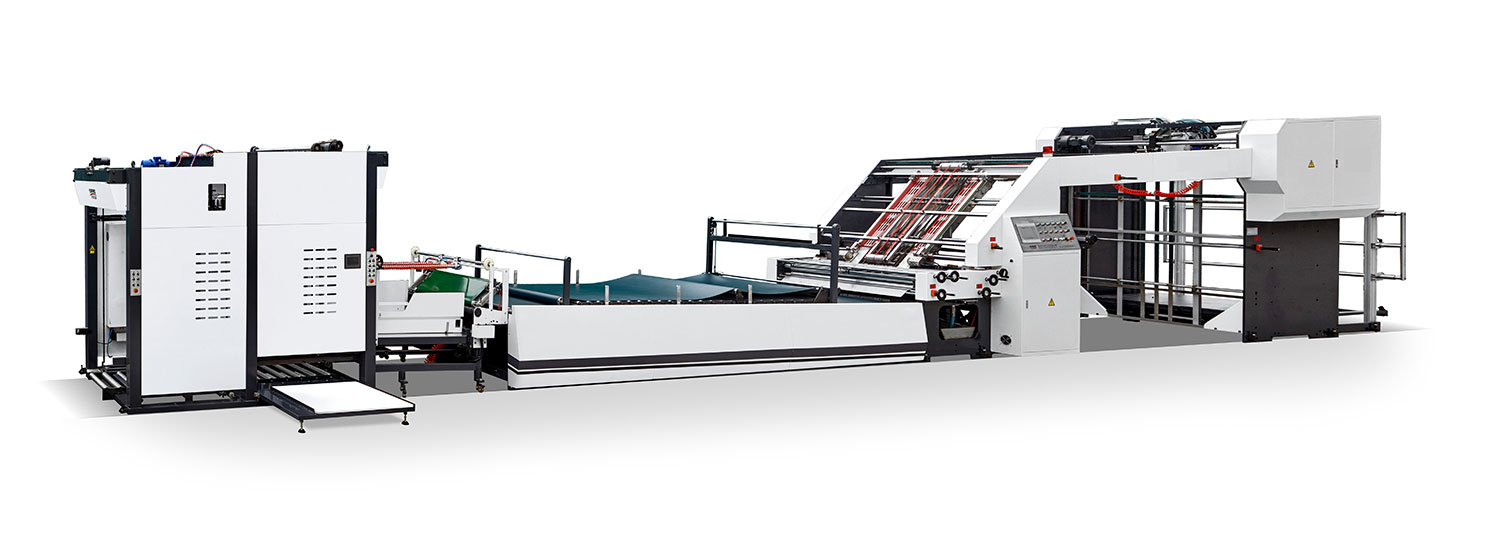

High Speed Laminating Machine And Flip Flop Machine YB-1450HS/ 1650HS

Max Sheet size

YB-1450HS

YB-1650HS

Min Sheet size

1450×1450mm

1650×1450mm

Top sheet thickness

150-500g

150-500g

Bottom sheet thickness

A/C/C/E/F (Corrugated paper)、(four ply corrugated paper)

Fitting precision

±1mm

±1mm

Air consumption

1.2m3/min

1.2m3/min

Measurement

23.6*2.7*3M

23.6*2.9*3M

Machine power

30KW

32KW

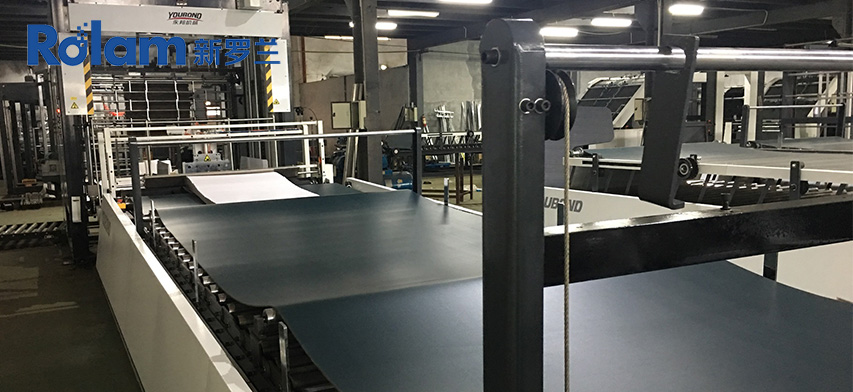

Bottom paper feeding

Use imported Servo motor electric controlling system,
with Japan NITTA suction belt to make suction power inverter,
and belt cleaned by water roller;
Patented technology to ensure corrugate and cardboard goes
out smoothly and simple operation

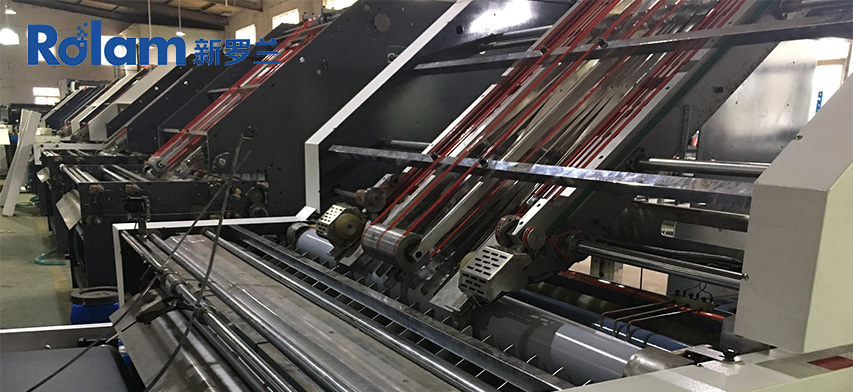

Top sheet feeding mechanism

equipped with high speed auto dedicated feeder,
both paper lifting and feeding nozzle
can freely adjust angle to the paper,
to ensure that whether thick or thin paper
can be delivered rapidly and smoothly

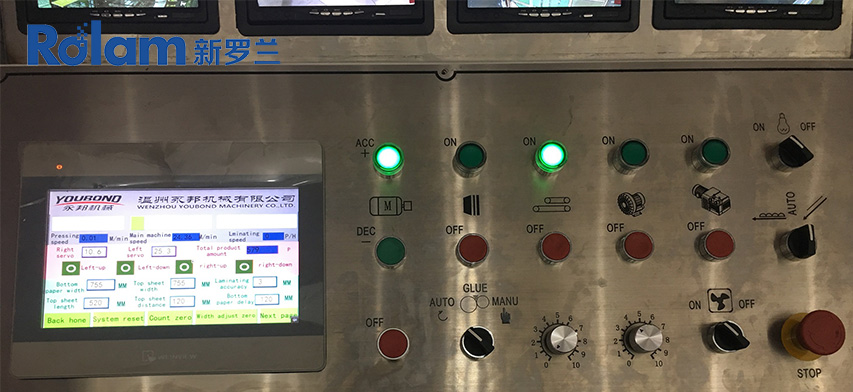

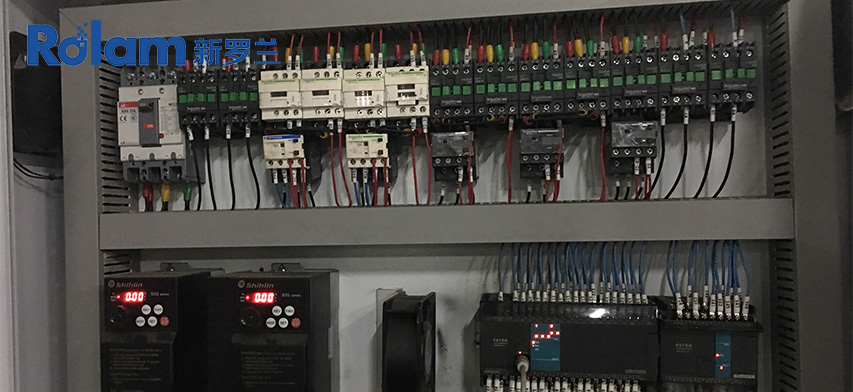

Electrical system

Designed in the accordance with European CE requirement,
ensure machine stability, high efficiency and low failure.
Using man-machine interface and PLC combination,
display all the information, such as warning, error detect,
failures, and operating speed, etc on the screen at a glance

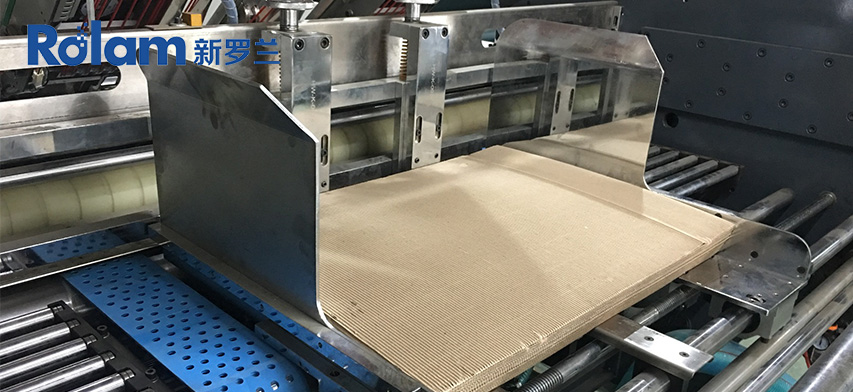

Pre-stack section

pre-stack pile of paper under the condition of non-stop,
improve efficiency. The special design of the
pre stack paper frame, save time and effort.

Glue roller

Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

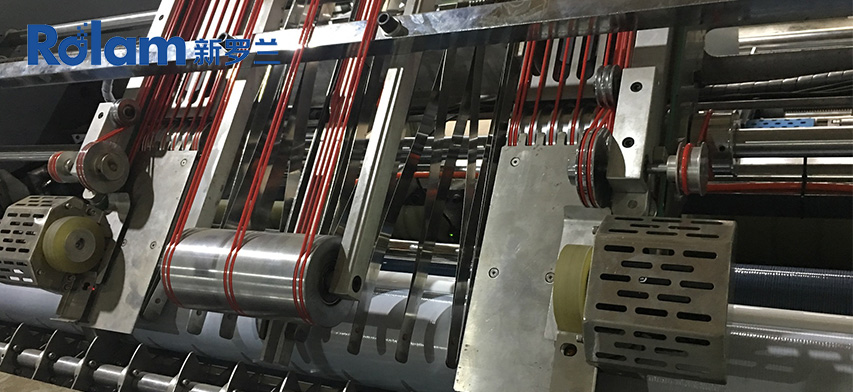

Transmission Part

Imported double toothed synchronous belt drive,
equipped with a tensioning device to ensure the
accuracy of the transmission, stable, low noise

Positioning System

Using groups of photoelectric sensing bottom
paper forward relative position,
control top paper on both sides of the servo motor,
independent compensation action,
the top paper and bottom paper precision laminated

Flip flop system

Stacking the laminated sheets based on the
set amount in front and back side automatically.
