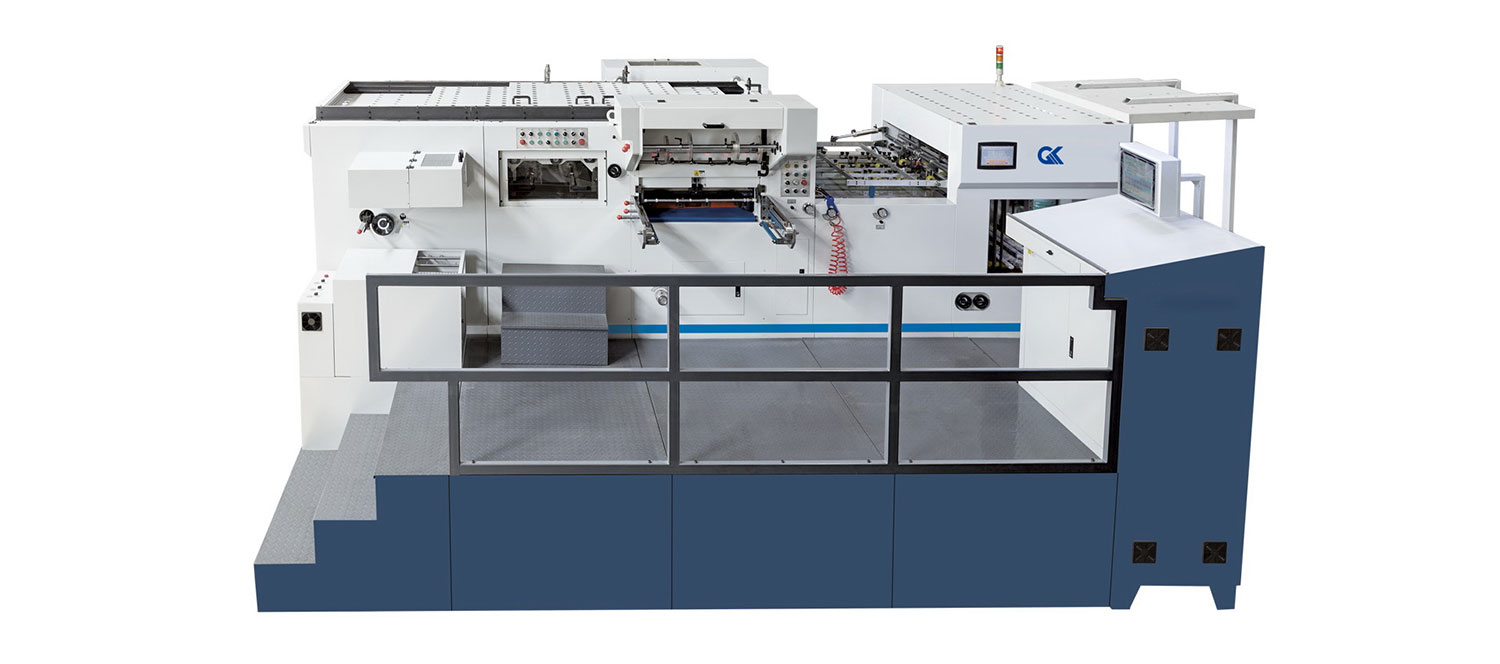

Automatic Flatbed Heavy Duty Hot Stamping Die Cutting Machine GK-1080MT

Max paper size:

1080x780mm

Min paper size:

400x330mm

Max cutting size:

1075x770mm

Die frame inner size:

1100x790mm

Cutting plate:

1080x780mm

Max stamping size:

1060x760mm

Min gripper edge size:

7mm

Cutting precision:

≤±0.125mm

Stamping precision:

≤±0.125mm

Max cutting speed:

600T

Max cutting speed:

7000S/H

Max stamping speed:

6500S/H

Foil roll max diameter:

Φ250mm

Vertical foil width:

15~1060mm

Horizon foil width:

15~760mm

Vertical foil axle:

3pcs

Horizon foil axle:

2pcs

Heating area:

12pcs

Temperature range:

50~199℃

Feeding pile height:

1550mm

Delivery pile height:

1500mm

Application:

Cardboard:0.1～2mm

Corrugated paper:＜4mm

Main motor power:

11KW

Heating area power:

24KW

Total power:

60KW

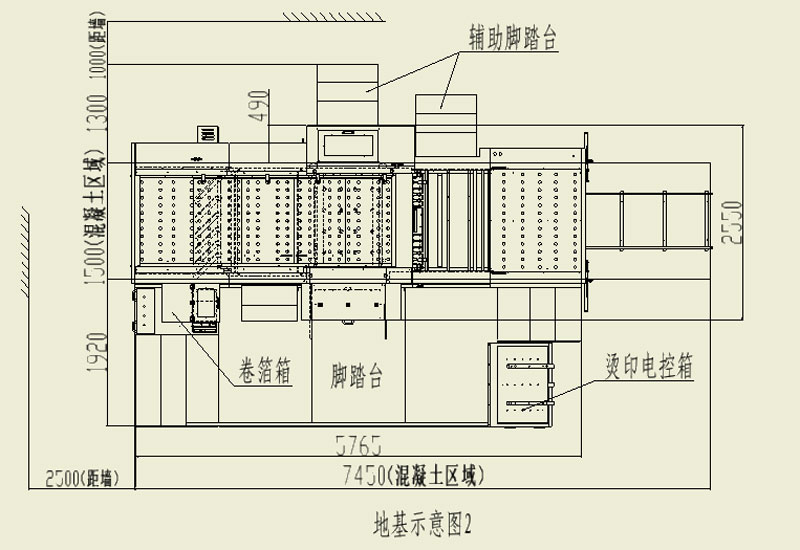

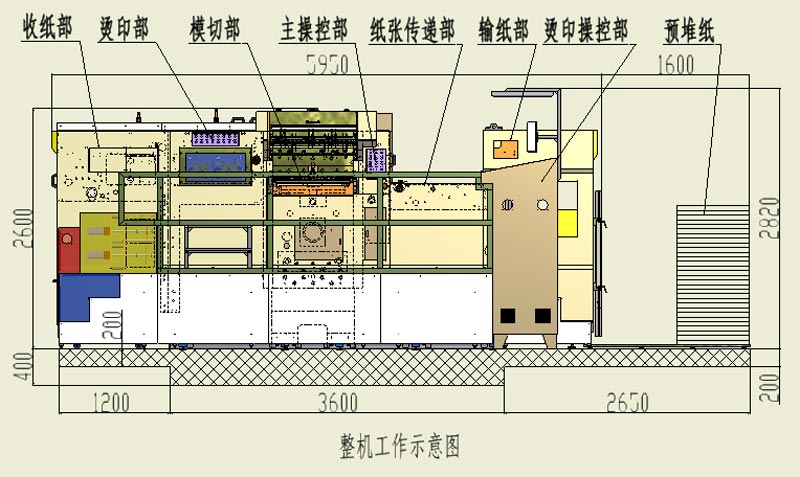

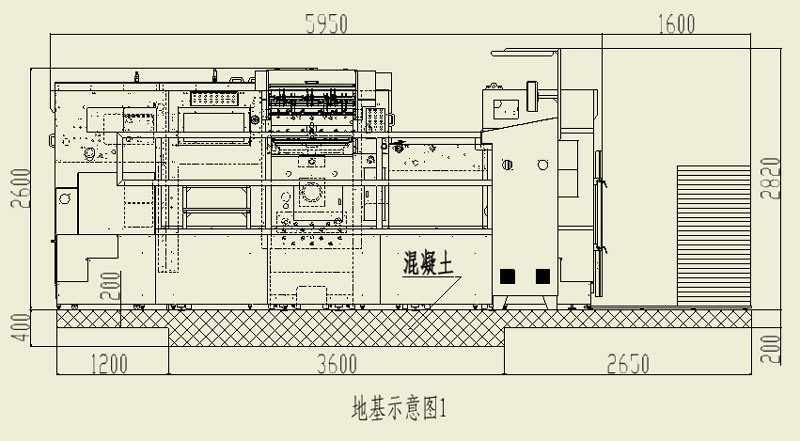

Dimension:

5880(+1600)x2550(+1400)x2600 mm

Weight:

20T

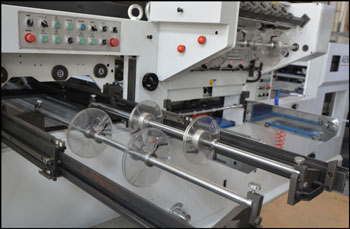

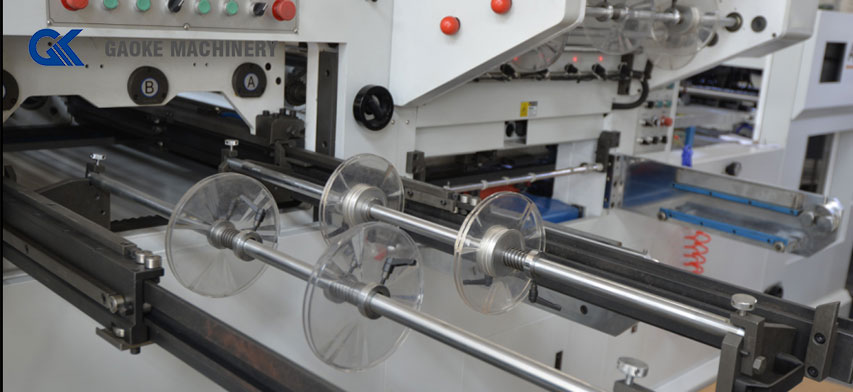

Feeding section

European technic precise feeder, fit both paperboard and corrugated paper.
    4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.
Double side lay (pull and push).
Feeding device fine tuning, non-stop adjust.
Electronic double detector.
Main, secondary feeding device no-stop switch.
Wear-resisting PU pressing wheel.
Dual purpose loader.
Feeding time fine tuning device.
Additional carriage rod 1 set, carriage plate 2 set.

Punching section

Pressure-bearing part is made of ductile iron QT500, high strength, never deform.
Alloy crankshaft with special process treatment.
Wear resisting worm, worm gear.
Convenient die flipping device.
Cycling lubrication oil supply system with high pressure oil pump from Taiwan
High precision intermittent device.

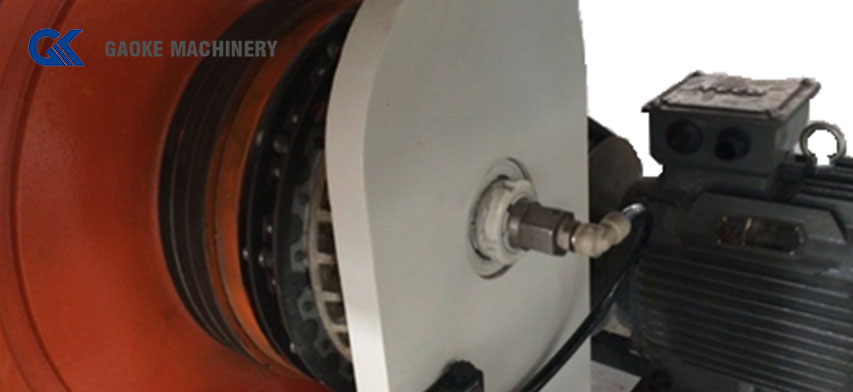

Pneumatic brake clutch device from Italy
Japanese SMC rotary joint.
Import gripper bar chain.
Pneumatic die locking device.
High hardness, strength Ti-Al alloy gripper.
Precise pressure adjust device.
PLC and man-machine interface from Taiwan.
Enhanced motor and flywheel.

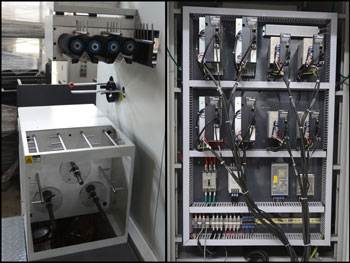

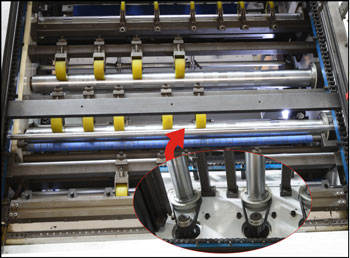

Hot stamping section:

Industrial tablet PC, screen touch input data, realize automatic program optimization, saving foils.
Imported motor and control system, precisely  feeding foil.
Separate setting temperature of 12 heating area, thermostatic control.
Electronic pressure control system, during bronzing, if there is no paper, there is no pressure.
Vertical, horizon foil separate blowing device.
Vertical, horizon foil break detector system.
Separate waste recycle device and recycle box.
Pull-out type foil feeding mechanism, improve efficiency, ensure safety.

Delivery section

Automatic aligning device, double blowing device ensure the paper can be well collected whether thick or thin.
Digital display touch screen in delivery section makes operation convenient
Control panel for human-
friendly operation.
Optoelectronic sensor makes the stack neat.
Delivery automatic lift control system.
Secondary manual delivery
Main chain protection device.
Roll back prevent device.
Non-stop delivery device
