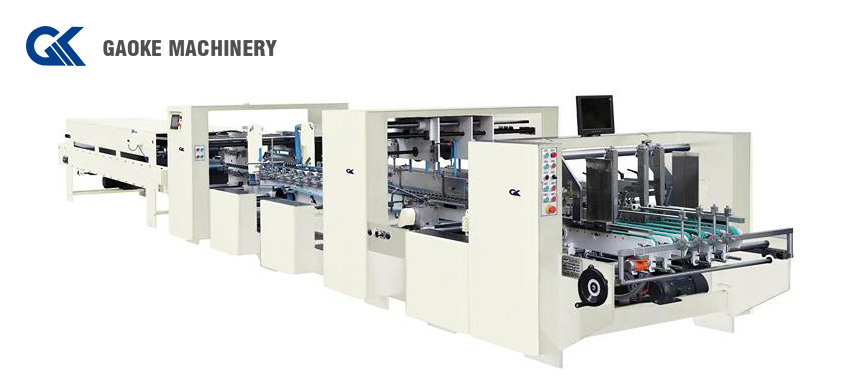

Automatic High Speed Bottom Lock Folder Gluer

GK-P series box folding gluing machine is an air-moving pressure bed device for edge-straightening hook, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.

Descriptions

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.

(We can customize of other size).

GK-P Technical Parameters

MODEL	GK-P1200-BL	GK-P1450-BL	GK-P1600-BL
Paper material	Cardboard 210-800gsm, A/B/E Flute
Max Speed	260m/min
Max.thickness of folded box	12mm	12mm	12mm
Way of folding	fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1200mm	1450mm	1600mm
Length x Width x Height	13.5x1.85x1.6m	13.5x2.15x1.6m	13.5x2.4x1.6m
Net Weight	7T	8T	9T
Total power	14.5kw	19.5kw	19.5kw

Straight Line Box Way of folding Three carriers
Model	1200Type	1450Type	1600Type
A+B+C+D+E	300-1200	350-1450	350-1600
F	70-900	70-900	70-900
D+E	140	170	170

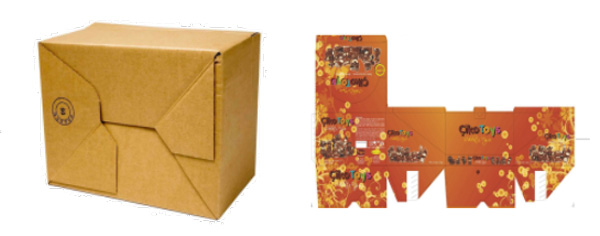

Crash Lock Bottom Box Way of folding Three carriers
Model	1200Type	1450Type	1600Type
A+B+C+D+E	300-1200	350-1450	350-1600
G	70-900	70-900	70-900
L	30-110	30-110	30-110
B+C（Min）	140	170	170

Automatic High Speed Bottom Lock Folder Gluer

Product description

Descriptions

GK-P Technical Parameters

Straight-line type

Crash lock bot

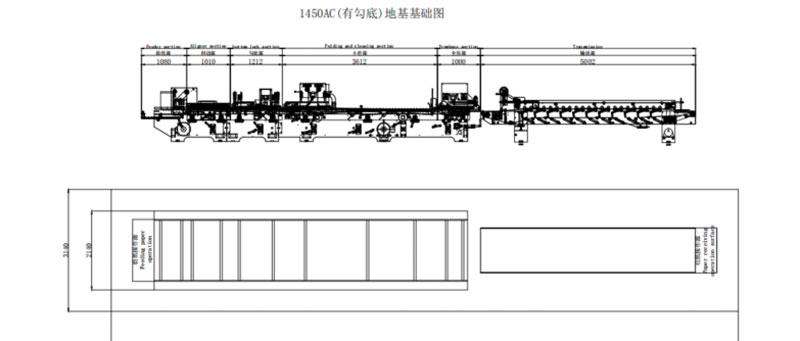

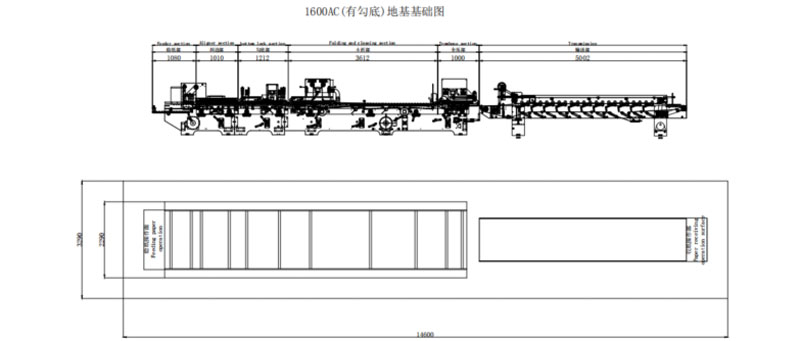

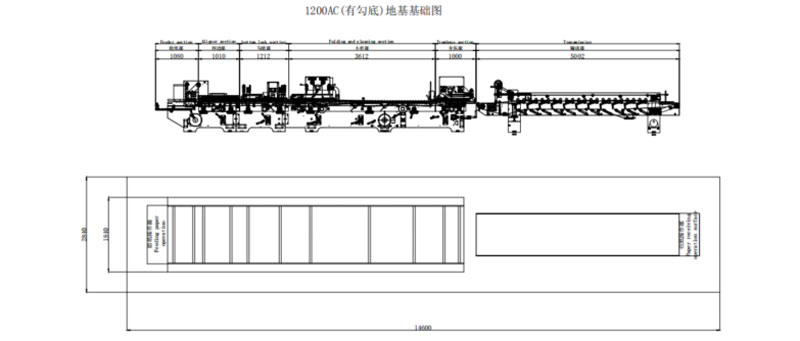

Foundation Drawing
