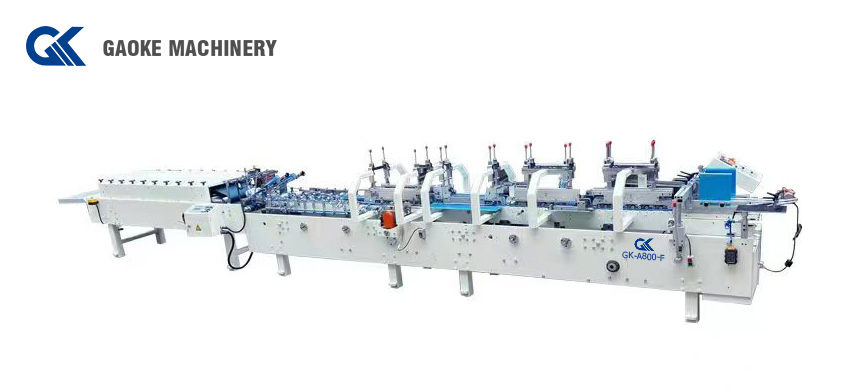

Automatic High-Speed Pre-folding Folder Gluer



Descriptions

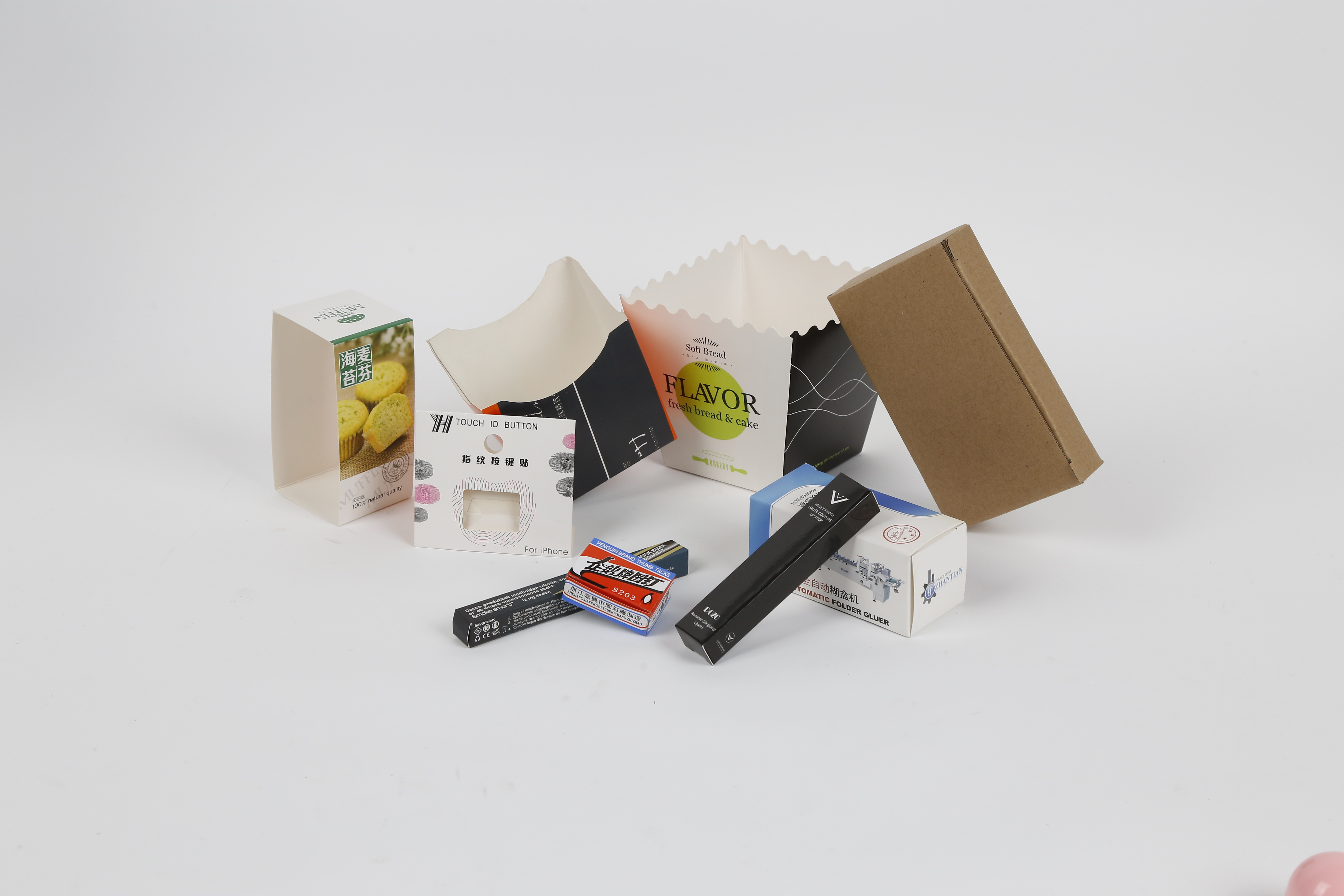

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of pre-fold boxes. Pre-folding can be applied to auto packaging, the fold 1 and fold 3 of the processed box can reach 180°and 135° perfectly combining the requirements of automatic packaging.(We can customize of other size).





AS-B Technical Parameters

MODEL	GK-A800-F	GK-A900-F	GK-A1000-F
Paper material	Cardboard 210-800gsm，E/N/F Flute
Max. speed	0-220m/min continuous adjustment
Feeding way	Automatic feeding
Way of folding	single side gluing or both side gluing, pre-folding
Glue Material	Cold glue/water-based glue
Electric power	3.7KW AC380V 3P
Length x Width x Height	8500*900*1300mm
Net Weight	2000KG

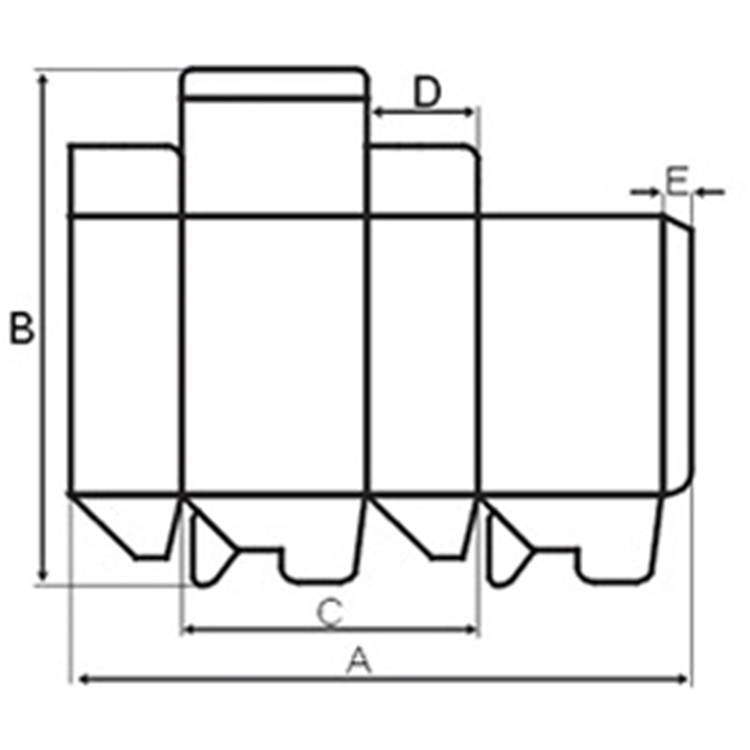

Technical Sheet(Unit: mm)
Model	Model	A	B	C	D	E
GK-A800-F	Side-glue box	110-560mm	65-500mm	50-270mm	7mm	6mm
	Pre-folding box	160-560mm	65-500mm	80-270mm	10mm	6mm
GK-A900-F	Side-glue box	110-660mm	65-500mm	50-320mm	7mm	6mm
	Pre-folding box	160-660mm	65-500mm	80-320mm	10mm	6mm
GK-A1000-F	Side-glue box	130-760mm	80-600mm	60-370mm	10mm	8mm
	Pre-folding box	180-760mm	80-600mm	90-370mm	15mm	8mm

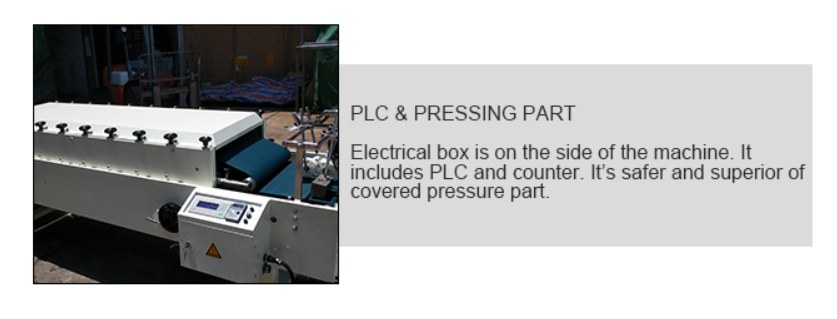

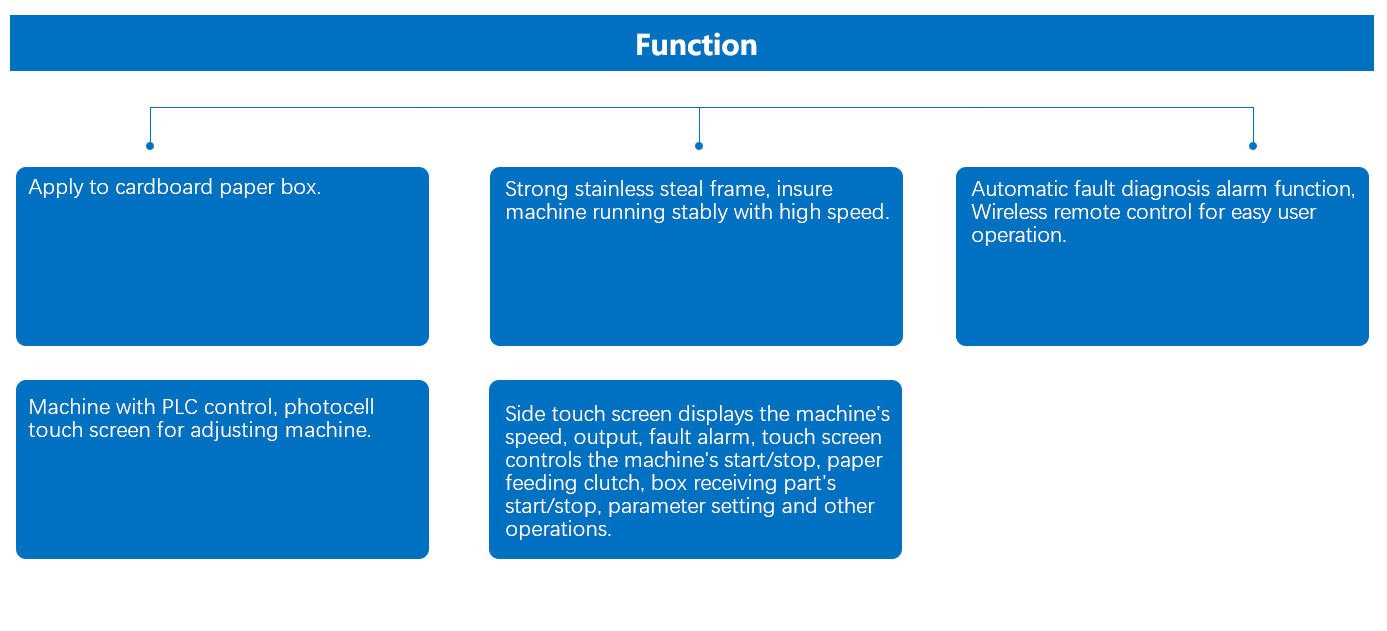

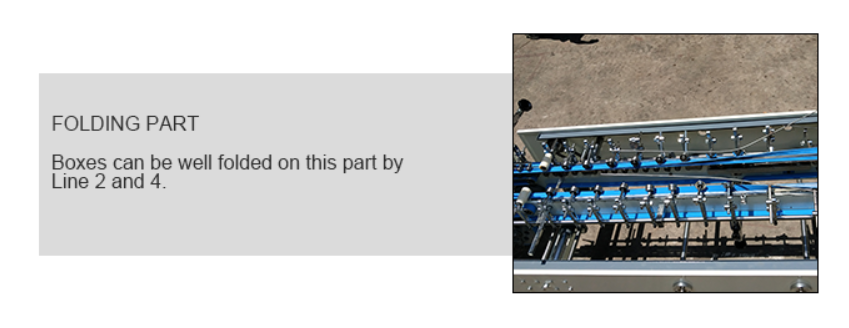

Features introduction

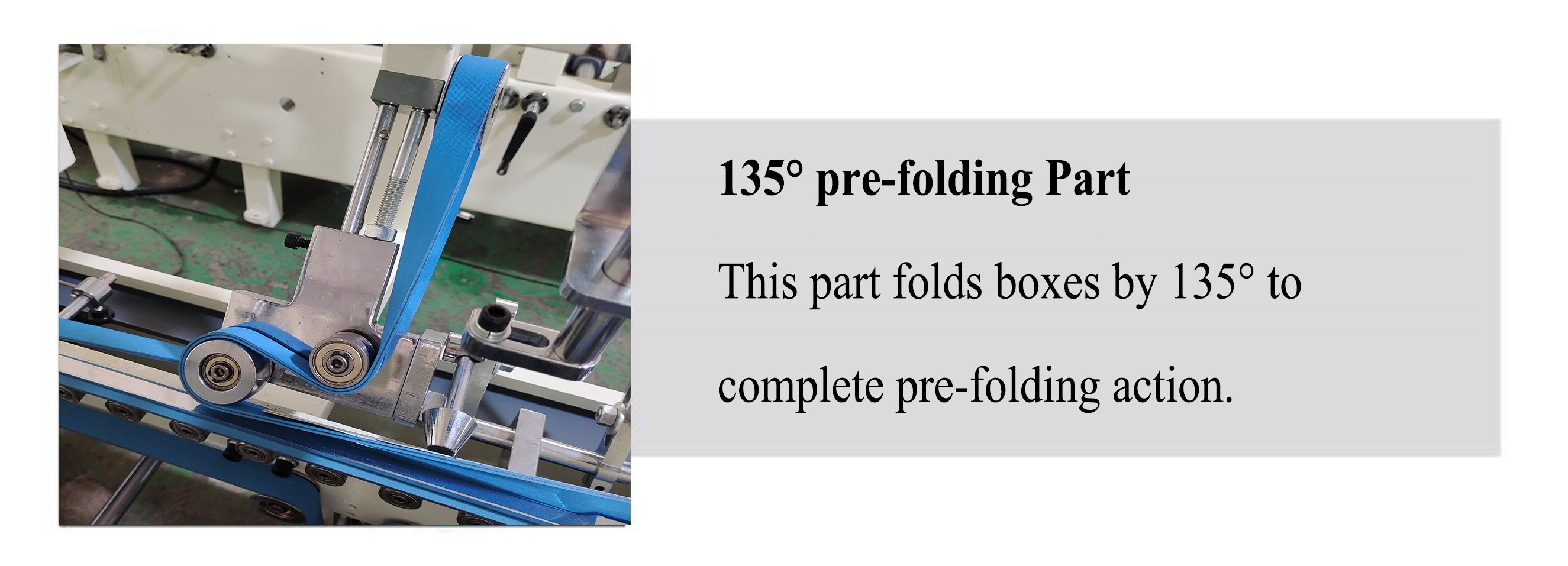

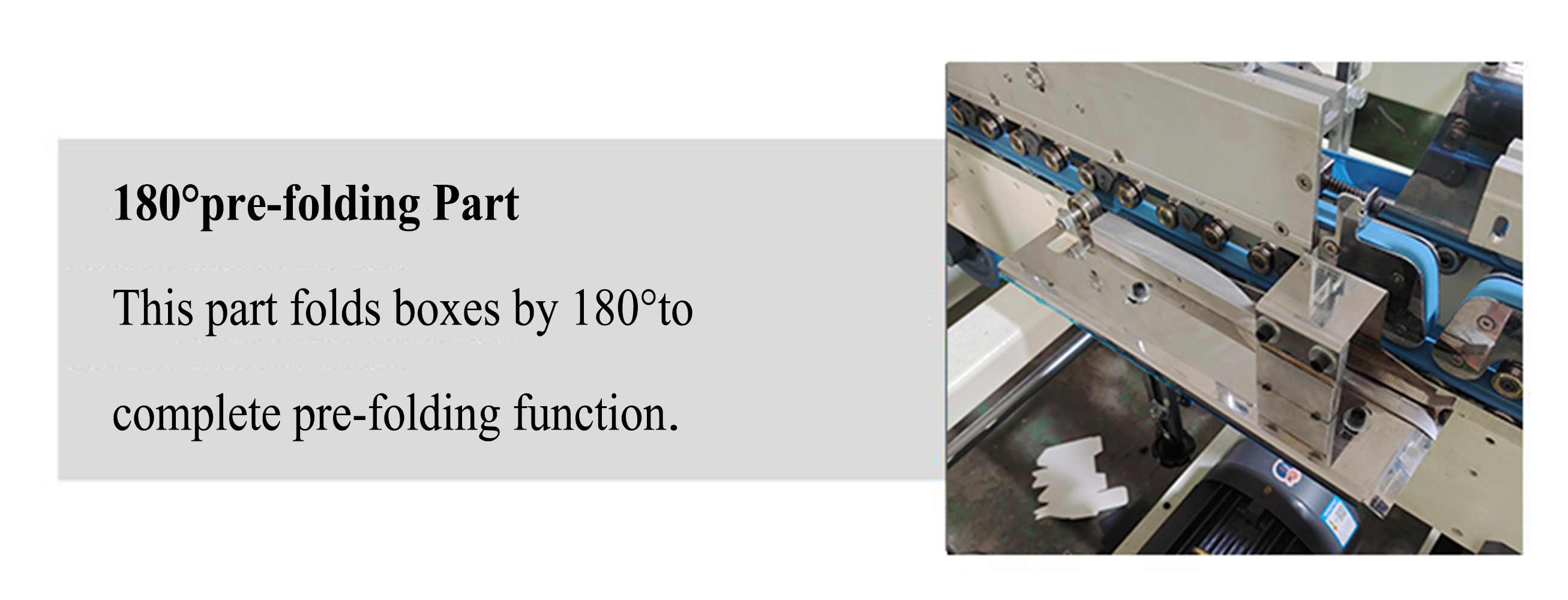

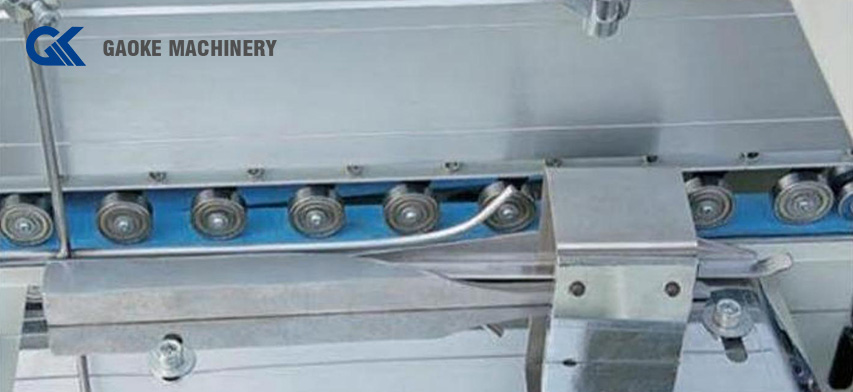

Pre-Folding Type
