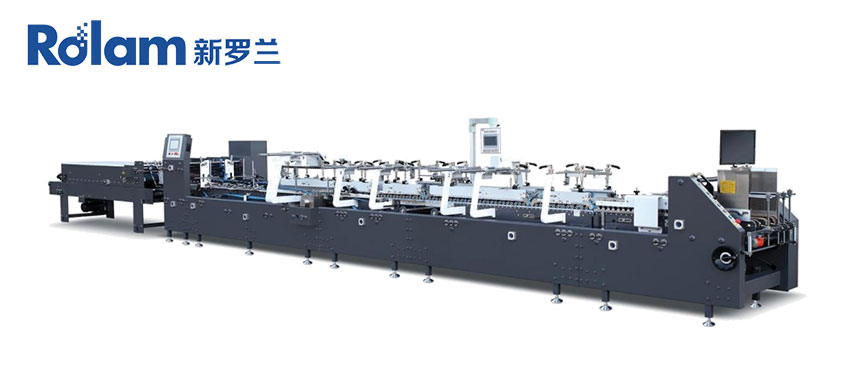

Name: GS-S Series Automatic 4&6 Corner Folder Gluer
Brand: Gaoke
SKU: 00147
Rating: 4.1 (124 reviews)

GS-S Production Description

Widely suitable for processing and pasting various types of paper boxes for food, medicine, cosmetics, stationery, and other common box-making and bottom-hooking boxes. (If there are functional requirements, we can design according to customer needs)

GS-S Technical Parameters

Model	650	800	1100
Paper material	Cardboard 210-800gsm, E/N/F Flute
Max.Speed	400m/min
Max. thickness of the folded box	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	650mm	800mm	1100mm

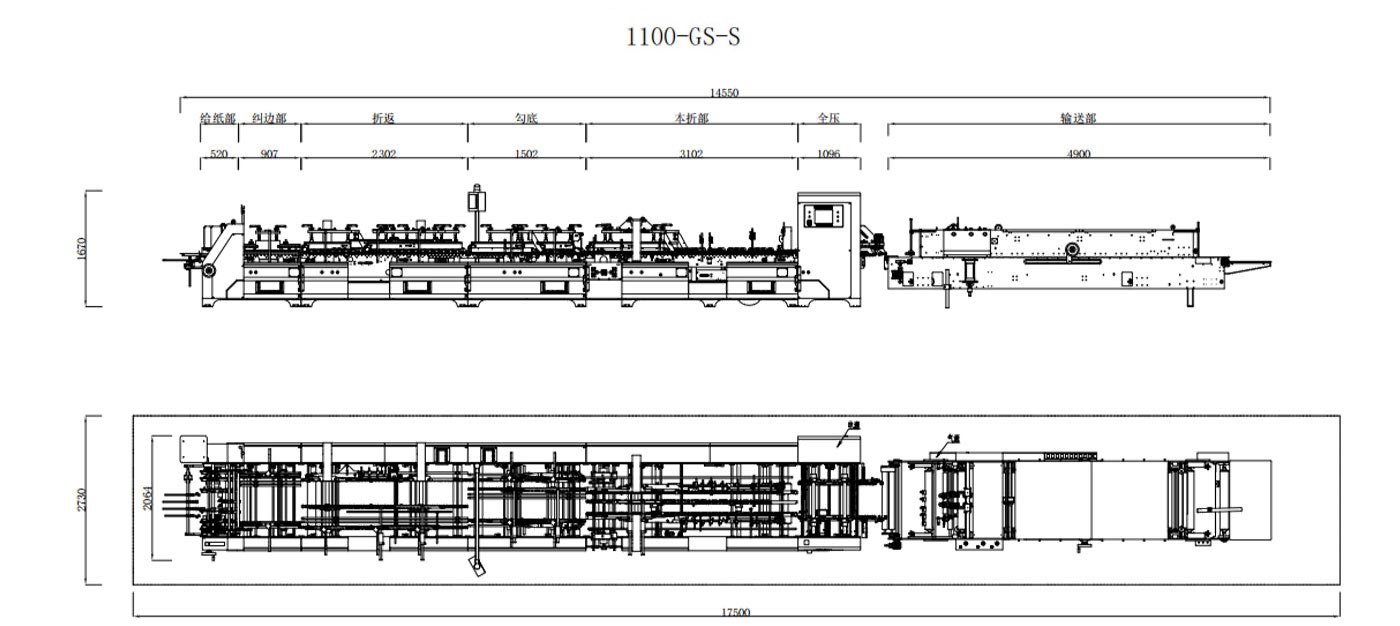

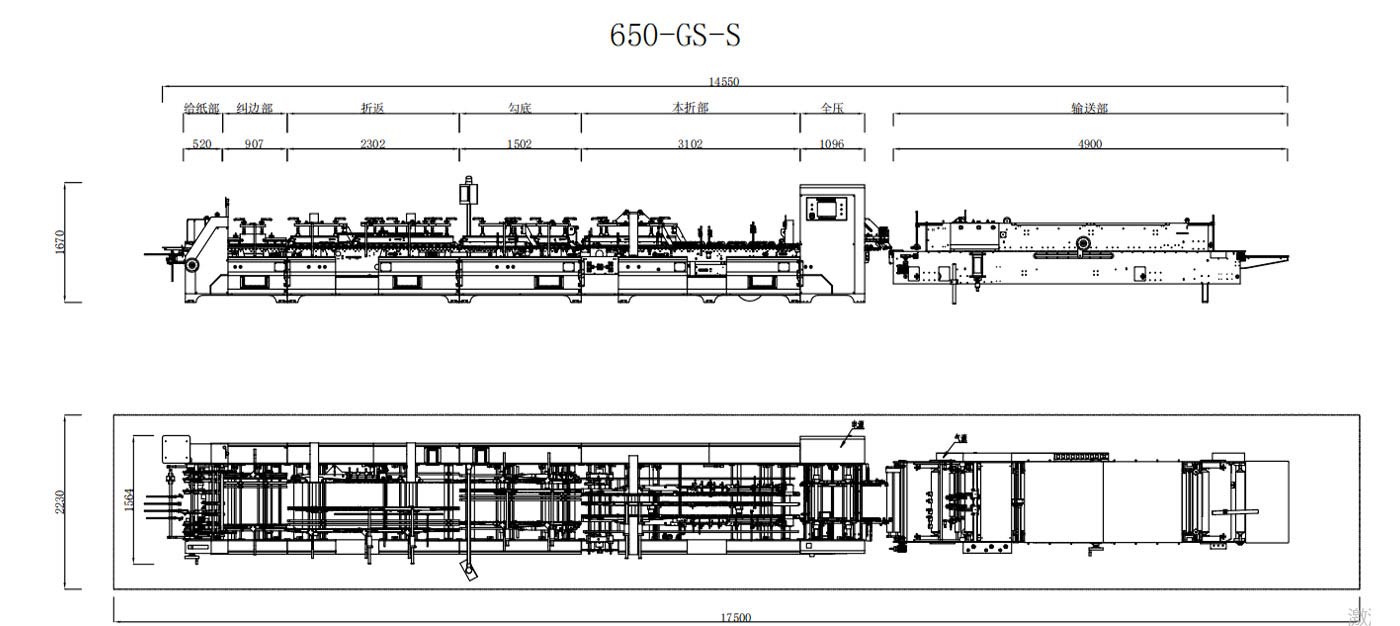

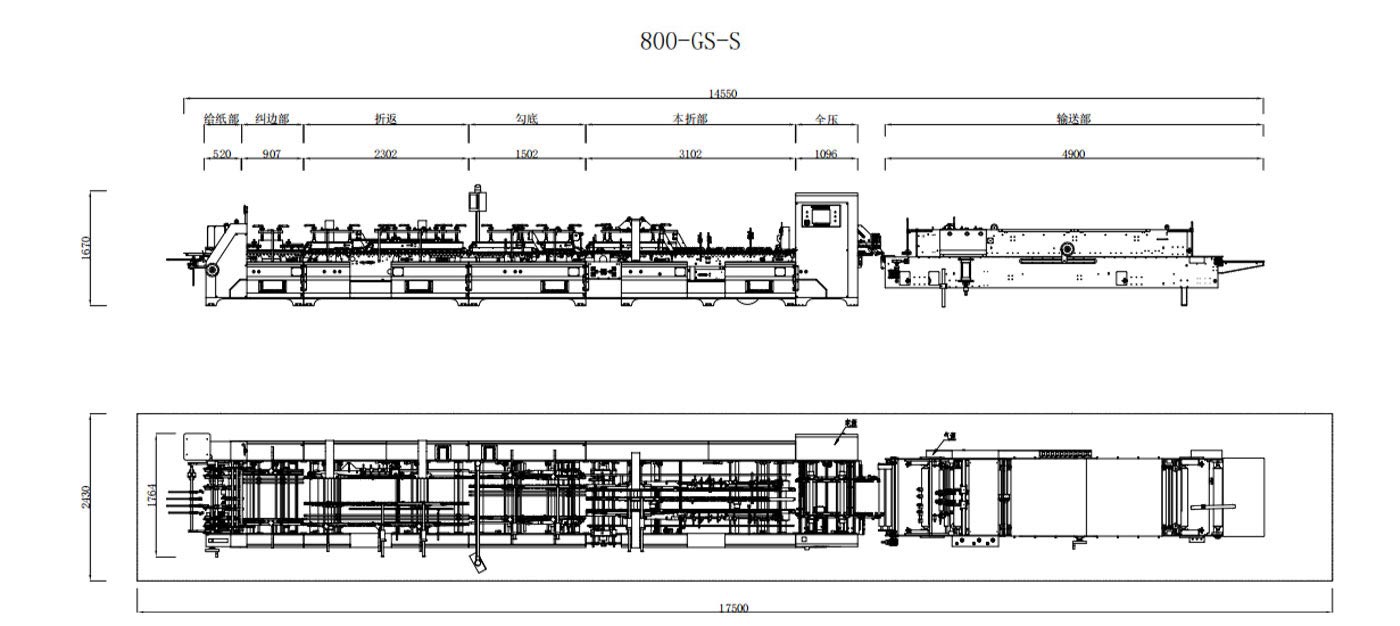

Length × Width × Height	14.6×1.6×1.67m	14.6×1.76×1.67m	14.6×2.0×1.67m
Net Weight	4.5T	5T	5.5T
Total power	19.5kw	19.5kw	19.5kw

Features introduction

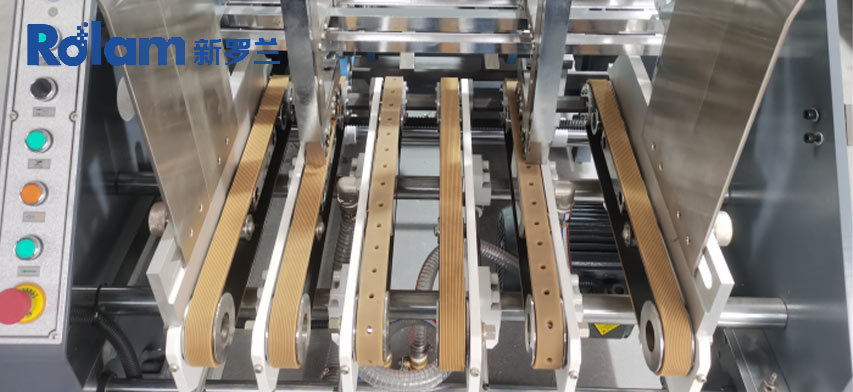

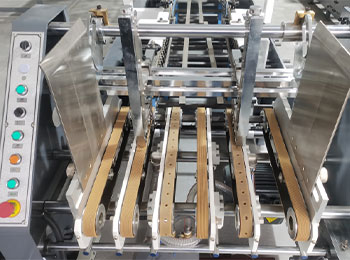

Paper Feeding Section • 6pcs Adjustable feeding belts to ensure easy adjustment, stable, and smooth feeding. • Continuously Variable Speeder to ensure feeding internal and stable transmission. • One-touch Pneumatic knife, easy for the adjustment of feeding belts.
Aligner Section • Equipped with an auto-correction device to correct the obliquity and ensure the correct feeding.

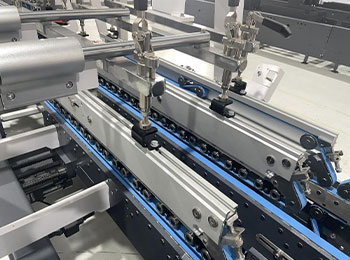

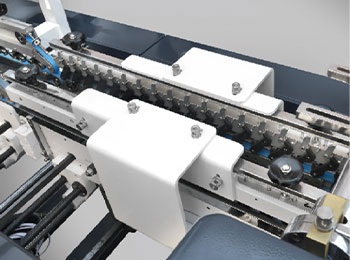

Pre-folding Section • Double-board structure with a set of pre-folding knives. • Pre-fold angle is 180°and 135°, especially suitable for small but high cartons, and more satisfactory while rapid prototyping.

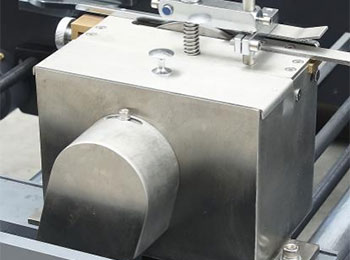

Lower Gluing Tank • Lower gluing tank is 2L. • Easy to remove and clean.

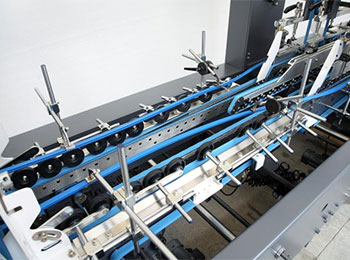

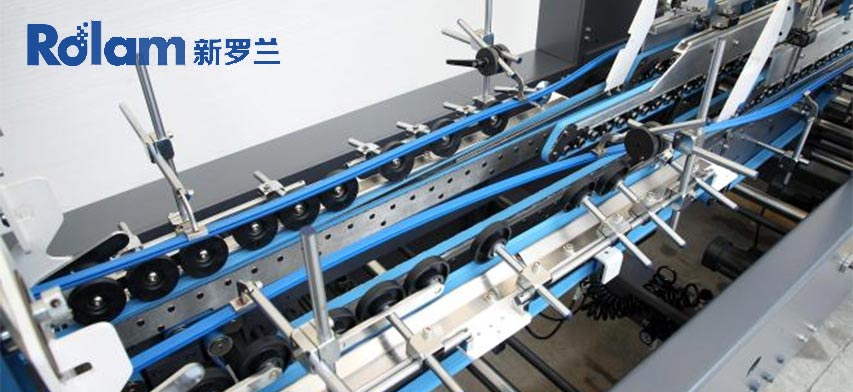

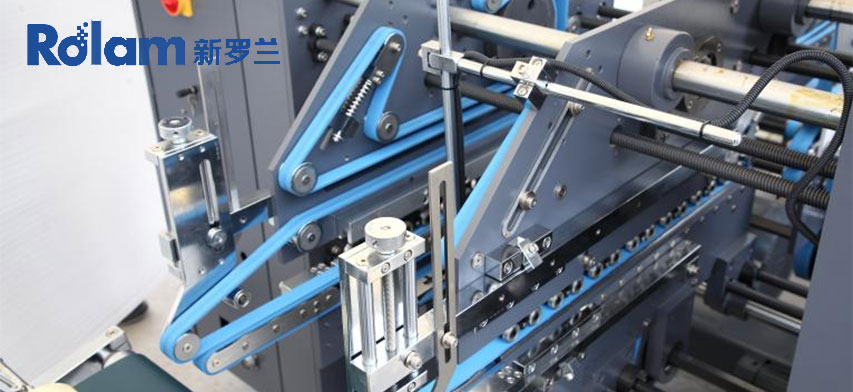

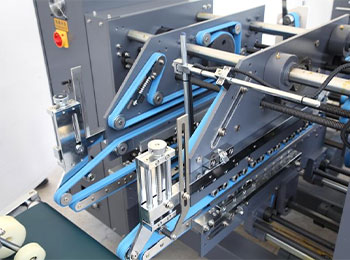

Folding and Closing • The folding is equipped with the driving belt. • Folding belts have a corrective function. Extension work, make the box form more stable.

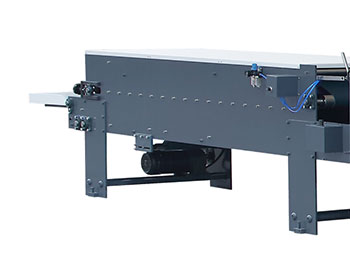

	Rombone Section • Adjust the pressure easily and reliably to ensure the gluing quality. • Equipped with a pneumatic counting device, which makes counting convenient. • The press is equipped with an independent speeder. The operator can set the collecting speed.

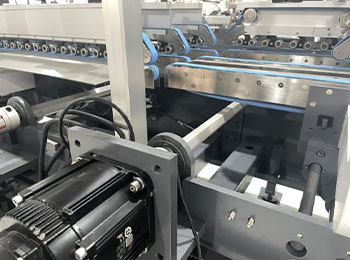

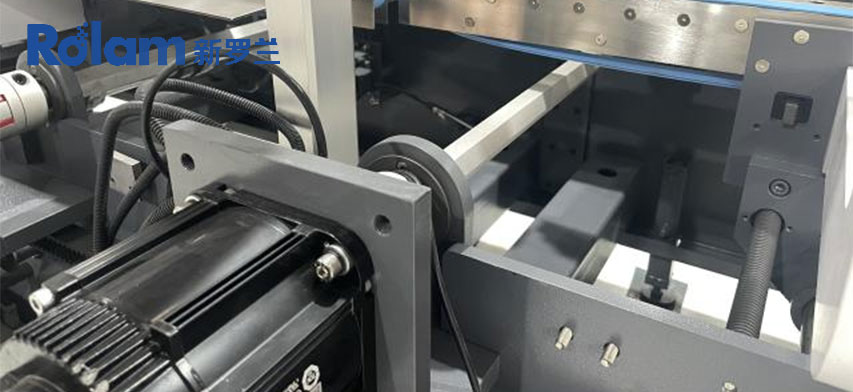

	4 and 6-Corner • Motorized and untimed electronic back-folding system with intelligent servo motor technology.
	Transmission • Equipped with one-touch pneumatic pressure adjustment, easy operation. • Press has two functions: Waiting, when feeding is paused, press will auto enter into waiting state Travel switch, pause the machine in case of wrong collecting

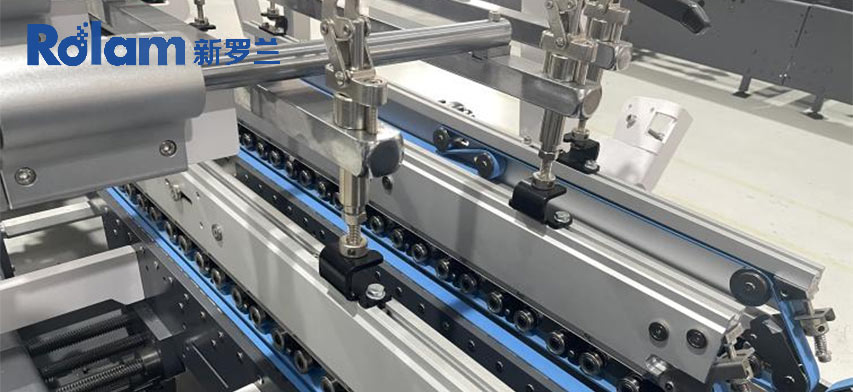

	Cold Glue System • Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped boxes, gluing quickly and accurately sizing.

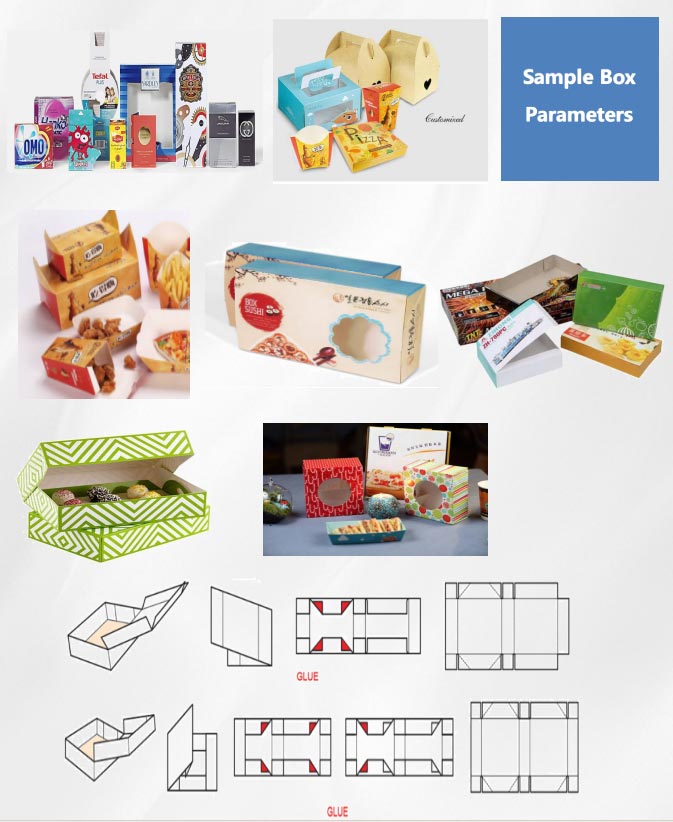

Samples Parameters

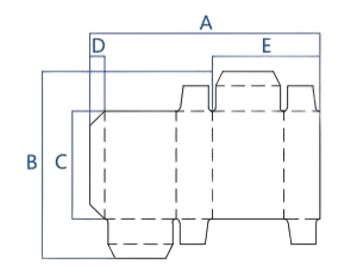

Straight Line Box
Model	650Type	800Type	1100Type
A	140-650	160-800	220-1100
B	70-800	70-800	70-800
C	70	70	70
D	10-20	10-20	10-20
E	65-320	75-390	105-540

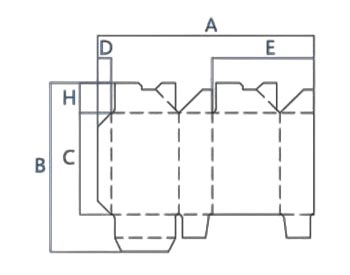

Crash Lock Bottom Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	140-650	160-800	220-1100
B	70-800	70-800	70-800
C	70	70	70
D	10-20	10-20	10-20
E	65-320	75-390	105-540
H	30-100	30-100	30-100
4 Corners Box
Model	650Type	800Type	1100Type
A	150-450	150-600	150-900
B	800	800	800
H	30-100	30-100	30-100
6 Corners /6 Corners in Climbing Way
Model	650Type	800 Type	1100 Type
A	260-450	260-600	260-900
B	800	800	800
H	30-100	30-100	30-100
